TOP249Y Extended Power, Design Flexible

Supply Ability:	20,000 Bag/Bags per Week
Payment Terms:	T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Battery Holder

Price:0.05-0.16 USD/Piece

Min. Order:1,000 Pieces
Infrared Thinnest Styled Pin Distance 1.27m

Price:10.00-20000.00 USD/Piece

Min. Order:1000 Pieces
ZH-039A Piezo Ignitor And Ignition Electrode

Price:1.00-50.00 USD/Piece

Min. Order:2000 Pieces
for Allen Bradley 1786-RPT 100% New & Origi...

Price:666.00 USD/Piece

Min. Order:1 Piece

Product Details

Packaging Details:	NEW AND ORIGINAL

Specifications

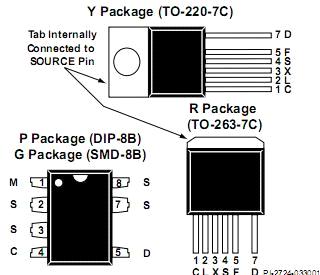

TOP249Y Extended Power, Design Flexible Pin Functional Description
DRAIN (D) Pin:
High voltage power MOSFET drain output. The internal start-
up bias current is drawn from this pin through a switched high-
voltage current source. Internal current limit sense point for
drain current.
CONTROL (C) Pin:
Error amplifier and feedback current input pin for duty cycle
control. Internal shunt regulator connection to provide internal
bias current during normal operation. It is also used as the
connection point for the supply bypass and auto-restart/
compensation capacitor.
LINE-SENSE (L) Pin: (Y or R package only)
Input pin for OV, UV, line feed forward with DCMAX reduction,
remote ON/OFF and synchronization. A connection to SOURCE
pin disables all functions on this pin.
EXTERNAL CURRENT LIMIT (X) Pin: (Y or R package only)
Input pin for external current limit adjustment, remote
ON/OFF, and synchronization. A connection to SOURCE pin
disables all functions on this pin.
