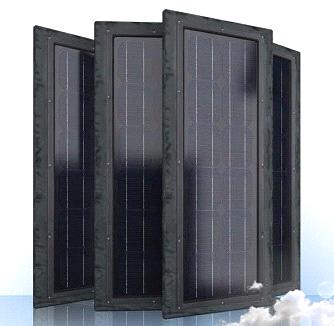

Solar Slate Tile

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Specifications

Fangxing solar tile came into being, which is ingenious combination of photovoltaic components and flat-panel tile and the integration of color and appearance, further organictly integrates into the overall style of the building.

At the same time with making full use of sloping roof for power generation, it gives building the beauty of modern technology and achieves a unity of both function and aesthetic.

System is designed according to the specific situation. Fangxing solar tile, in series or parallel, achieve the required system voltage, and set with controller, inverter and battery, form a complete independent household system or network systems, provide continuable electricity in decades.

Parameter

Type	Fangxing Solar Slate
Solar Cell	Mono-silicon(125mm×125mm)
Overall Size(mm)	410×940
Effective Size(mm)	350×900
Thickness(mm)	13
Weight(kg)	6.0±0.2
Power under Standard Test Conditions(Wp).-Pm	33
Optimum Operating Voltage(V).-Vmp	6.0
Optimum Operating Current(A).-Imp	5.0
Open Circuit Voltage(V).- Voc	7.3
Short Circuit Current(A).- Isc	5.31
Power Output Tolerance(%)	±3
Short Circuit Temperature Coefficient(%)	+0.09/ºC
Open Circuit Temperature Coefficient(%)	-0.34/ºC
Power Temperature Coefficient under Standard Test Conditions (%)	-0.37/ºC
Working Temperature(ºC)	from -40 to 90
