Home  >Products Catalog > Terminal block and cable accessory > Nylon cable gland for cable connector range 3~40mm

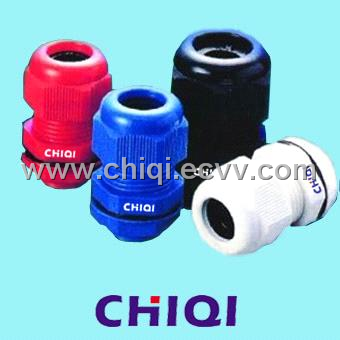

Nylon cable gland for cable connector range 3~40mm SafeBuy Supplier Member

Supply Ability: 2,000,000 Piece/Pieces per Month
Shipping: FOB NINGBO
Payment Terms: L/C, T/T
Update Time: 2019/7/21
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: 2000PCS/CTN

Quick Details

  • Gender: Male
  • Application: nylon
  • Type: PG
  • Model Number: PG
  • Brand Name: CHIQI

Specifications

Cable Gland
1)Application:
To fix cable for electrical control box, machine
Material: Nylon 66
Flame class: UL 94V-2
Color: White/black, other colors available on request.
1) Used for machinery control boxes, distribution plates, electrical machines, etc.
2) Special designation, good strengths and none damage to electrical machine
3) Cable can be inserted through directly then tighten easy and save time
4) Model Number: PG, Metric cable glands
5) Place of Origin: China
Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the Seal and Clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.

Thread Type PG, according to DIN 40430
Material Nylon PA66(Flammability UL 94-2)for A,C,E parts
NBR rubber for B,D parts (EPDM is optional for weather resistant)
IP Protection IP68 (10 Bar)
Working Temp Static:-40 to +100 °C ,short time can be reach +120 °C
Dynamic:-20 to +80 °C ,short time can up to +100 °C
Color Grey,Black,Other colors customized.
Model PG7-PG48
MOQ Small orders accepted
Payment Term A.L/C,T/T (Bank Transfer,Wire Transfer)
B.Western Union
C.Paypal (For samples fee & Courier cost)
Terms of Payment:FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Supply Ability 4 x 20 feet containers per week
Packaging Details A.Common Packing:100pcs + polybag + label + export carton
B.Customized Packing:OEM Label,Inner Box,Blister,etc
