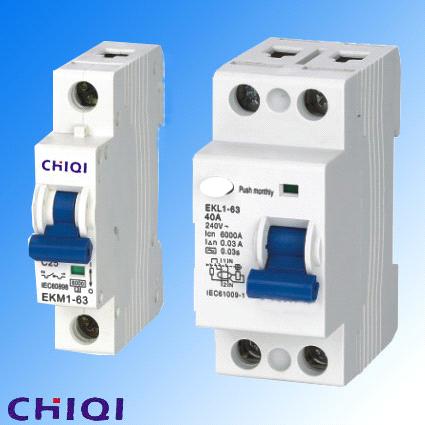

Mini Circuit Breaker (MCB),1p,2p,3p,4p, breaking capacity 10kA

FOB Price:	1.15 - 4.60 USD/Piece
Supply Ability:	500,000 Piece/Pieces per Month
Shipping:	FOB NINGBO
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	240PCS/CTN

Quick Details

Type: Mini
Model Number: EKM1-63
Brand Name: CHIQI

Specifications

Mini circuit breakerElectrical Features:
Rated current In: 1, 23, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 1P, 1P+N 2P, 3P, 3P+N, 4P
Rated voltage Ue: 230/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 10000A
Energy impulse withstand voltage (1.2/50) Uimp: 6000V
Dielectric test voltage at ind. Freq. For 1 min: 2Kv
Pollution degree: 2
Thermo-magnetic release characteristic: B, C, D

Mechanical Features:
Electrical Life: 8, 000
Mechanical life: 20, 000
Contact position indicator: Yes
Protection degree: IP20
Reference temperature for setting of thermal element: 30oC
Ambient temperature (with daily average < =35oC): -5oC... +40oC
Storage temperature: -25oC... +70oC

Installation:
Terminal connection type: Cable/ U-type busbar/ Pin-type busbar
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Terminal size tope/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N/m 22 In-lbs
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom

Combination with accessories:
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
