Shandong Qingyun Crane Machinery Co.,Ltd
China Manufacturer with main products: Overhead Cranes, Gantry Cranes electric hoist, Jib Cranes |

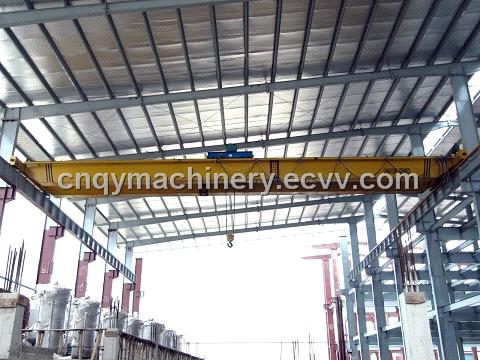

Overhead Crane (QD Double Girder type)
| FOB Price: | 10,000.00 - 2,000,000.00 USD/Set |
|---|---|
| Supply Ability: | 100,000 Set/Sets per Year |
| Shipping: | within 30 days after the order confirmed. |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | Disassembled and naked within the seaworthy containers, or by ro/ro vessels. |
Specifications
Overhead Crane
1- QD type,
2- Lifting Capacity: 5 - 200/20t
3- We can Design according to your
actual working conditions.
Overhead Crane
QD Double Girder Hook type
5-100/20t Electric Overhead Double Girder Crane (called 5-100/20t Cranein the following ) suitable to work in the all kinds factory, Mines,the open air place. Loading and unloading ,Transport materials in the fix span scope.
5-200/20t Crane composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device. There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side endcarriage which with the joint point in the middle.
QD5- 50/10t Double Girder Hook Type EOT Crane
|
Lifting capacity (t)
|
5
|
10
|
5/3.2
|
10/3.2
|
16/3.2
|
20/5
|
32/5
|
50/10
|
||||
|
Span (m)
|
10.5-31.5
|
|||||||||||
|
Max. Lifting
height (m)
|
Main lift
|
16
|
12
|
16
|
12
|
|||||||
|
Aux lift
|
//
|
//
|
18
|
16
|
18
|
14
|
18
|
18
|
||||
|
Speed
m/min
|
Main lift
|
A5
|
12.6
|
8.5
|
9.3
|
8.5
|
7.8
|
5.8
|
7.8
|
6
|
||
|
A6
|
12.8
|
10.3
|
12.8
|
10.3
|
9.7
|
7.2
|
9.5
|
7.8
|
||||
|
Aux. Lift
|
|
|
9.5
|
9.5
|
9.5
|
12.6
|
12.6(A5)
12.8(A6)
|
8.5(A5)
10.3 (A6)
|
||||
|
Trolley Travel
|
40
|
44.5
|
37.2
|
43.8
|
44.6
|
44.6
|
42.4
|
38.5
|
||||
|
Motor
(kw)
|
Main lift
|
A5
|
13
|
17
|
13
|
17
|
26
|
26
|
52
|
55
|
||
|
A6
|
15
|
22
|
15
|
22
|
30
|
30
|
55
|
75
|
||||
|
Aux lift
|
//
|
//
|
7.5
|
7.5
|
7.5
|
17
|
17
|
22
|
||||
|
Trolley
|
2.5
|
2.5
|
2.5
|
2.2
|
3.7
|
3.7
|
5.5
|
7.5
|
||||
|
Work duty
|
A5, A6
|
|||||||||||
|
Power supply
|
380V, 50Hz, 3-phase
|
|||||||||||
