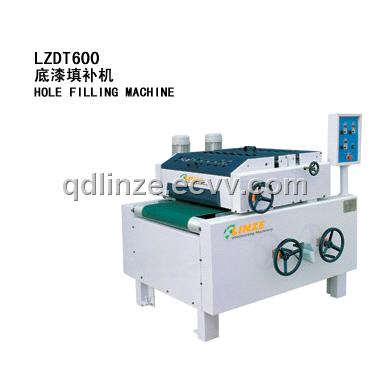

Fill up the Hole Machine

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Specifications

Features
1). Specially designed for those wooden boards with very thick cannular fiber, and used for filling the surface of three-ply; able to fill the dented pores, and scrape away the abundant paint for reutillization; thus sares efforts in manual filling, thus to increase the working effciency, reduce the rework raet, suitable for coating production line.
2). Conveyer belt, painting tyre and scraping tyre all driven by imported motor, adopts frequency convertor to adjust the speed, to maxmize the touch-up painting effect.
3). Redundant touch-op paint will be recycled regularly for reutilization.

MODEL	LZDT600	LZDT1000	LZDT1300
Coating width	600mm	1000mm	1300mm
Feeding speed	5-30m/min	5-30m/min	5-30m/min
Peeding power	0. 75kw	0. 75kw	1. 5kw
Coaling roller power	0. 75kw	0. 75kw	1. 5kw
Smooth roller power	0. 375kw	0. 75kw	1. 5kw
motor power	4. 5kw	4. 5kw	6. 75kw
Total motor power	6kw	6kw	9kw
Overall dimensions	1600x1750x1300mm	1600x2150x1300mm	1600x2450x1300mm
Weight	900kg	1100kg	1300kg
