WY10B excavator

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Henan in China

Specifications

Main Features:

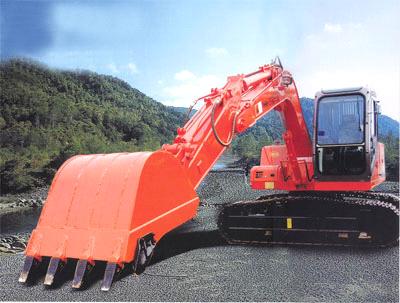

▲The WY10B caterpillar excavator adopts the YTO-LR4105ZG56 turbo-charged diesel engine, which is produced by using the advanced technologies from the British Ricardo Consulting Engineers, and is low in fuel consumption and low in noise.

▲The hydraulic system adopts the full power range regulating variable load sensing open-style hydraulic system, which is mature in its technology, excellent in its operational performance and high in its reliability. The variable pump, the solid multiple way valve, and rotary-motor are from the Japanese Toshiba Co., Ltd.

▲The travel motor is from the Japanese Teijin Seiki Company, Ltd., and its performance is outstanding. The hydraulic hoses are from the Italian Manuli Co., Ltd.

▲All the sealing members are from the Italian Parker Hannifin Co., Ltd. and famous domestic companies. The running system adopts the fully rigid chassis of standard excavators.

▲The frames are reinforced & X-shaped. The spring cushion tensioner protects the running mechanism from being impacted.

▲The tension oil cylinder facilitates adjustment of the tensity of the tracks, which are impact resistant, outstanding in stability, reliable in utilization and able to cope with various kinds of working conditions calmly.

Main Technical Parameters:

Machine parameters
Operating mass	10800 kg
Bucket capacity	0.4 m3
Track tread	2600 mm
Counterweight ground clearance	920 mm
Tail turning radius	1945 mm
Min. ground clearance	384 mm
Track gauge	1900 mm
Diesel engine
Model	LR4105ZG56
Type	4-cylinder, 4-stroke, water-cooled, vertical, exhaust-gas turbo-charge
Rated power	60 kW
Rated rotational speed	2200 r/min
Running, revolving
Max. traveling speed	0～4.6 km/h
Revolving speed	0～12.4 km/h
Gradeability	28 °
Hydraulic system
Solid multiple way valve	Japanese Toshiba Co., Ltd
Hydraulic pump	Japanese Toshiba Co., Ltd
Revolving motor	Japanese Toshiba Co., Ltd
Traveling motor	Japanese Teijin Seiki Co., Ltd.
Rated working pressure	28 MPa
External dimensions
Width of the top	2410 mm
Overall height (to the top of the driver's cab)	2771 mm
Overall length	6760 mm
