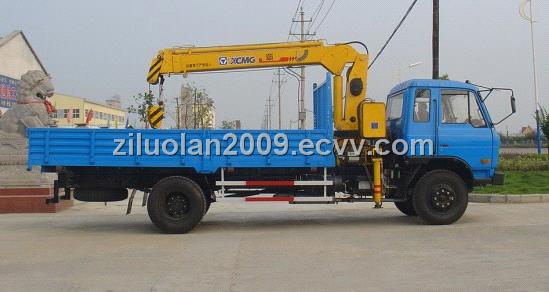

Truck with Crane

FOB Price:	23500.00 - 24000.00 USD/CHina Main Port
Shipping:	10-15days
Payment Terms:	L/C, T/T(Bank Transfer), D/P

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Hubei in China
Packaging Details:	Naked or according to user's request.

Specifications

Vehicle model CLQ5102JSQ Truck With Crane

Chassis model EQ1108G6DJ16

Overall dimensions mm 7220,7370 X 2470X 3320,2920,3120,3370

GVW kg Approx 10300

Rated loading capacity Approx 3505

Mass in working order Approx 6600

Body internal dimensions mm 3950,4100,3700X 2294X 550

Wheel base 3950

F/R track base 1900/1800

Approach/departure angle ° 30/18

Exhaust/hp ml/kw 5880/118

Max speed km/h 90

Tire specification 9.00-20,9.00R20 Engine type EQB160-20

Traction system 4X2 transmission 6-speed with over drive

Number of axles 2 Electric system 24V

Operation control system Electrically hydraulic control Allowable passengers in cab 3

Equipment Crane can be selected

Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning;new H-shape type; high precise drawn tube;24°tie-in.

Engine DongFeng Cummins Environmental Protection,supercharge,diesel engine

Production cycle 5-6 days
