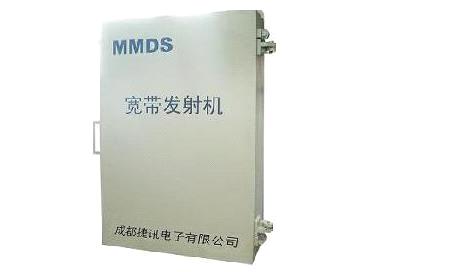

Digital Broadband Transmitter

FOB Price:	1.00 - 1000000.00 USD/Set
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Place of Origin:	Sichuan in China

Specifications

Features of Digital Broadband Transmitter:

1) Low local oscillation phase noise enhances the digital signal transmitting quality,
2) Alinearity design of low power dissipating promotes the power of transmitter and reduces the non-linearity distortion products
3) Outdoor design promotes valid transmitting power and reduces the cost of transmitting feeder loss
4) Outdoor design greatly reduces the system cost by eliminating the waveguide
5) Small-size design fits he project
6) Self-cooling heat sink increases the device reliability
7) Aluminum structure design facilitates the maintenance.

Parameters	Unit	Technical index
Optical wavelength	nm	1300-1600
Nominal optical input power	dBm	-1
Input optical power range	dBm	-5~+2
Maximum input optical power	dBm	+3dBm
Optical connector		FC/APC
Optical return loss	dB	≥ 45
Output impedance	Ω	50
Output return loss	dB	≥ 12
Output level	dBmV	85(-1dBm optical input)
Flatness in operation band	dB	≤ 1

3) Other parameters

Parameters	Unit
	30W	Approx. 25kg
Weight	50W	Approx. 35kg
	100W	Approx. 45kg
	30W	480(L)620(W)240(H)mm
Dimension	50W	680(L)620(W)240(H)mm
	100W	850(L)620(W)240(H)mm
Temperature		-20℃~45℃
	30W	Approx. 180VA
Power dissipation	50W	Approx. 300VA
	100W	Approx. 500VA

Features:

1. Low local oscillation phase noise enhances the digital signal transmitting quality,
2. Alinearity design of low power dissipating promotes the power of transmitter and reduces the non-linearity distortion products
3. Outdoor design promotes valid transmitting power and reduces the cost of transmitting feeder loss
4. Outdoor design greatly reduces the system cost by eliminating the waveguide
5. Small-size design fits he project
6. Self-cooling heat sink increases the device reliability
7. Aluminum structure design facilitates the maintenance.

Specification:

1. Electrical signal parameters

Parameters	Symbol	Min	Sample	Max	Unit
Output frequency range	FOUT	2500		2700	MHz
Output power	P1db	10	30 50	100	W
Frequency conversion gain flatness@200MHz and width	△△G200MHz		1	1	dB
Input frequency range	FIN	2.5G-local oscillation		2.7G-local oscillation	Hz
Input signal level	PIN	75	85	95	2dBmV
Gain attenuation range(4-bit)	Atten	0		15	dB
AGC range	△GAGC		± 5/± 0.5		dB
Output power stability(AGC state)	△POUT		1		dB
Local oscillation SSB phase noise@10KHz	NΦ		-95	-90	dB/Hz
Group delay	GD			20	ns
Input port return wave loss	RLIN	14			dB
Output port return wave loss	RL out	17			dB
Output port impedance /connector			50Ω /N-50K
Output port impedance/connector			50Ω /N-50K

2. Optical signal parameters

Parameters	Unit	Technical index
Optical wavelength	nm	1300-1600
Nominal optical input power	dBm	-1
Input optical power range	dBm	-5~+2
Maximum input optical power	dBm	+3dBm
Optical connector		FC/APC
Optical return loss	dB	≥ 45
Output impedance	Ω	50
Output return loss	dB	≥ 12
Output level	dBmV	85(-1dBm optical input)
Flatness in operation band	dB	≤ 1

3. Other parameters

Parameters	Unit
	30W	Approx. 25kg
Weight	50W	Approx. 35kg
	100W	Approx. 45kg
	30W	480(L)620(W)240(H)mm
Dimension	50W	680(L)620(W)240(H)mm
	100W	850(L)620(W)240(H)mm
Temperature		-20℃~45℃
	30W	Approx. 180VA
Power dissipation	50W	Approx. 300VA
	100W	Approx. 500VA

Total solution for digital DTV system. Headend equipments, encoder, multiplexer, QAM/QPSK/COFDM modulator, scrambler, MMDS transmitter, CAS, SMS, all kinds of Set top boxed, satellite receiver, etc...
