Jiangxi Putian Data Cable Co., Ltd.
China Manufacturer with main products: Cat5 cable, Cat5e cable, Cat6 cable, Cat3 cable, UTP&FTP cable, network cable, lan cable, telephone cable, communication cable, ethernet... |

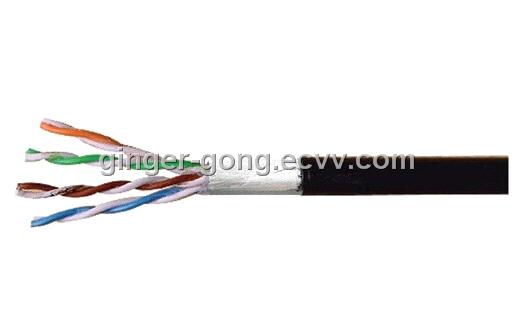

UTP Waterproof Cable
| Supply Ability: | 305 Kilometer per Day |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Jiangxi in China |
|---|---|
| Packaging Details: | 305m/box |
Specifications
* Product characteristics:
1) Standard: Meet or exceed TIA /EIA 568 B. 2, ISO/IEC 11801, Category 5e, with UL, CUL, CE, RoHS.
2) Application: 10/100Base-T, Token ring, Gigabit Ethernet, 155 Mbps ATM, TP-PMD Audio, Multimedia and Telephone network, etc.
* Structure:
1) 24 AWG (0. 5mm) copper conductor
2) Solid polyolefin insulation
3) Waterproof strand
4) PE jacket
5) Frequency: 100 MHz.
6) Impedance: 100±15 Ohm.
7) Transmission speed: 100Mbps.
8) Pair to Ground Capacitance Unbalance: 50pF/m.
9) Conductor DC Resistance: < 163Ω/km @ 20 centigrade
10) Color code: blue white/blue, orange white/orange, green white/green, brown white /brown.
11) Outer color: black.
12) OEM & ODM are welcome.
* Electrical performance:
|
Frequency(MHz) |
1 |
4 |
10 |
16 |
20 |
31. 25 |
62. 5 |
100 |
125 |
|
Attenuation(dB/100m) |
1. 9 |
3. 7 |
6. 0 |
7. 8 |
8. 7 |
10. 9 |
15. 3 |
19. 8 |
22. 3 |
|
NEXT(dB) |
71 |
61 |
55 |
52 |
51 |
48 |
43 |
40 |
39 |
|
PS NEXT(dB) |
69 |
59 |
53 |
50 |
49 |
46 |
41 |
38 |
37 |
|
ACR(dB) |
69 |
57 |
49 |
44 |
42 |
37 |
28 |
20 |
17 |
|
PS ACR(dB) |
67 |
55 |
47 |
42 |
40 |
35 |
28 |
18 |
15 |
|
ELFEXT(dB) |
76 |
68 |
57 |
52 |
48 |
44 |
38 |
34 |
32 |
|
PS ELFEXT(dB) |
74 |
68 |
55 |
50 |
46 |
42 |
36 |
32 |
30 |
|
Return Loss(dB) |
26 |
29 |
30 |
30 |
30 |
30 |
28 |
27 |
26 |
* Optional types:
|
Product Name |
Model NO. |
Remark |
|
Cat5e UTP Waterpfoor Cable |
HSYYZ-5e 4*2*0. 5 |
External |
|
Cat5 UTP Waterpfoor Cable |
HSYYZ-5 4*2*0. 5 |
External |
Packing information:
|
Product Name |
Packing |
Carton Size(W*D*H) |
N. W |
|
4-Pair Cat5e UTP Waterproof Cable |
305m/roll |
365mm*230mm*365mm |
13. 51Kg |
