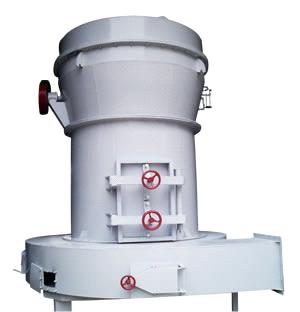

Raymond Mill - Stone Mill

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Specifications

With qualified products and good service, VIPEAK supplies series Raymond roller mill(Raymond mill), which is suitable for grinding barite, calcite, potash feldspar, talcum, marble, limestone, ceramics, etc.

	Features
	Applications	80-325mesh fine powder grinding
	Field of application	Agriculture, biology, construction materials, glass / ceramics, mining, mineralogy / metallurgy
	Feed material	medium-hard, hard, brittle, tough
	Size reduction principle	pressure
	Material of grinding tools	manganese steel, Chromium - molybdenum Alloy
	Dust Filter System	With Bag Dust Filter
	Durability	depending on feed material

Working Principle of Raymond Mill:
First material should be crushed into the desired size by Jaw Crusher, and delivered to the Silo by Bucket Elevator. Our Designed Vibrating Feeder will feed the material into the grinding room. With the air current from the Air Blower, those powder conforms to the fineness degree will be blew into the cyclone collector and those powder that is not consistent with the desired size will return to the grinding room to be re-ground. The whole system is airtight circulation, and the circulatory flow under the negative pressure.
Raymond Mill features:
★ Three-dimensional structure
★ land-saving
★ The screen-passing rate can reach to 99%
★ The transmission is steady and reliable;
★ The transmission device of mainframe adopts airtight gear case and zonal wheel.
★ Centralized control for the electric system, convenient to operate.
Raymond Mill technical parameter :

Model			3R2115	3R2615	3R2715	3R3016	4R3216
Roller	Number		3	3	3	3	4
	Diameter (mm)		210	260	270	300	320
	Height (mm)		150	150	150	160	160
Ring	Inner Diameter (mm)		630	780	830	880	970
Ring	Height (mm)		150	150	150	160	160
Max. Feeding Size(mm)			＜15	15-20	15-20	15-20	20-25
Overall Dimensions (L×W×H) (m)			4.5×2.8×5.8	5.65×3.305×5.95	8×3.5×4.9	6.5×4.1×5.2	9.9×5.8×10.58
Mainframe Power (kw)			15	18.5	22	30	37
Fineness of finished product （mm)	0.125	Capacity (t/h)	1.2-1.8	1.8-2.5	2.3-2.8	2.6-4	3.2-4.5
	0.075		0.6-1.2	1.2-1.8	1.8-2.8	1.9-2.6	2.4-3.1
	0.044		0.6-1.0	0.8-1.2	0.9-1.7	1.0-1.9	1.8-2.5
