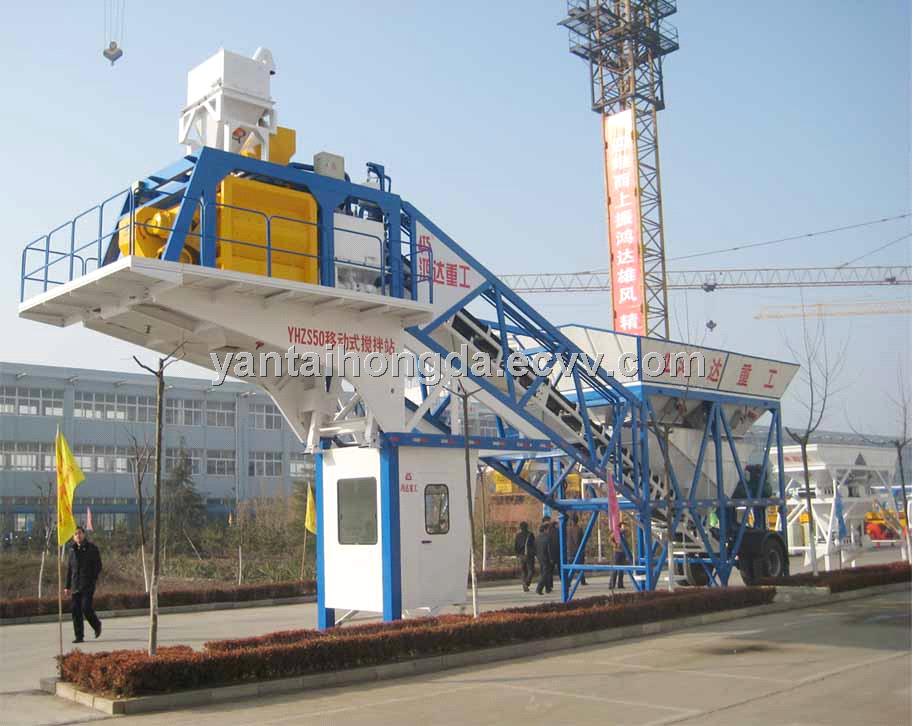

moblile concrete mixing plant

Shipping:	30days
Payment Terms:	T/T

Inquiry Now

Place of Origin:	Shandong in China

Quick Details

[HZS/HLS series of commodity concrete mixing plant/towers main technical parameters]

Model		HZS/HLS60	HZS/HLS90	HZS/HLS120	HZS/HLS180	HZS/HLS240
hProduction in theory (m3/)		60	90	120	180	240
Mixing engine		JS1000	JS1500	JS2000	JS3000	JS4000
Measuring scope and precision	Stone(kg)	2000±2%	2500±2%	3000±2%	4000±2%	5000±2%
	Cobble(kg)	2000±2%	2500±2%	3000±2%	4000±2%	5000±2%
	Cement(kg)	600±1%	900±1%	1200±1%	1800±1%	2400±1%
	Mingled materials(kg)	300±1%	500±1%	600±1%	900±1%	1200±1%
	Water(kg)	300±1%	400±1%	500±1%	800±1%	1000±1%
	Additives(kg)	30±1%	30±1%	50±1%	80±1%	100±1%
Distributing plant/container		Container quantity,container capacity,and installed form of distributing plant and mixing towers varying with customers' demands
Powder tank system		Powder tank volume and quantity,and configuration of powder tank accessories varying with customers'demands.
General power(kw)		80	105	125	175	220
Discharging height(m)		3.8	3.8	3.8	3.8	3.8

[HZS series of modular road concrete mixing plant main technical parameters]

Model		HZS40	HZS50	HZS75	HZS100	HZS150	HZS200
Production in theorym (3/h)		40	50	75	100	150	200
Mixing engine		JS750	JS1000	JS1500	JS2000	JS3000	JS4000
Measuring scope and precision	Aggregate(kg)	2000±2%	2500±2%	3500±2%	4500±2%	6500±2%	9000±2%
	Cement(kg)	600±1%	800±1%	900±1%	1200±1%	1800±1%	2400±1%
	Mingled materials(kg)	600±1%	800±1%	500±1%	600±1%	900±1%	1200±1%
	Water(kg)	200±1%	300±1%	400±1%	500±1%	800±1%	1000±1%
	Additives(kg)	20±1%	30±1%	30±1%	50±1%	80±1%	100±1%
Distributing plant		PL1200	PL1600	PL2400	PL3200	PL4800	PL6400
Powder tank system		Powder tank volume and quantity,and configuration of powder tank accessories varying with customers'demands.
General power(kw)		65	80	105	125	175	220
Discharging height(m)		2.8, 3.8	2.8, 3.8	2.8, 3.8	2.8, 3.8	2.8, 3.8	2.8, 3.8
