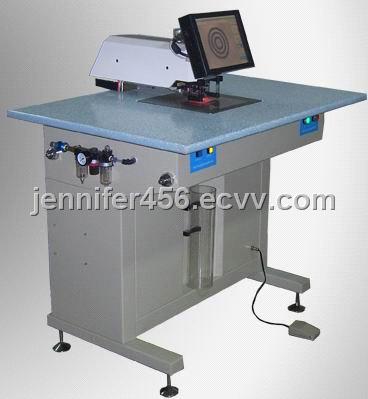

Automatic Position Centerd PCB Puncher

FOB Price:	10000.00 - 12000.00 USD/Set
Supply Ability:	30 Set/Sets per Day
Shipping:	5 working days
Payment Terms:	T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Oscillocope Part

Price:150.00-300.00 USD/PCS

Min. Order:
Latest Model Automatic Face Mask Machine with H...

Price:26000.00-35000.00 USD/Set

Min. Order:1 Set
JMDM 7D Interactive Entertainment Cinema

Price:100.00-10,000.00 USD/Set

Min. Order:1 Set
Barrelled Production Line

Price:10000.00-20000.00 USD/Set

Min. Order:1 Set
80meter Telecommunication Steel Tower

Price:1010.00-1050.00 USD/Ton

Min. Order:20 Ton
Automatic Macroporous Resin Absorbing Unit

Price:10,000.00-50,000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Shaanxi in China
Packaging Details:	Boxes

Specifications

The furtures of the products :(Touch Screen. Vacuum Suction Pressure Plate.Rapid speed, high precision )

1>. The product is produced by refering to the features of the domestic and international circuit board ,which adopts humanization and high-tech design carefully.It can punch any incomplete round above semicircle.

2>. Strong and swift operating system--WINDOWS2000 which is fully-automated in identifying image and punching, 10.4-inch large color display screen that does no harm to eyes.

3>. It ranks the first among the similar products at home and in Asia,since the thickness of punching is Ф0.1mm-Ф3.0mm

4>. Possessing many illuminant from positive and negative .It can identify many kinds of target made by soft flexible circuit board,films,thin-film switch diazo Aluminium board and so on.

5>. The advanced sucker vacuum suction pressure plate which can make the hole more accurate.

6>. When the workpieces are within the scope of computer’s control, the equipment will lock targets automatically, punch and count kinds of round holes simultaneously,It can make the users convenient.

7>. The import workbench made of granite will never wear out.

8>. In order to be more accurate,the main components are imported from Japan and Taiwan.

9>. The standard diameter of the punching hole isФ1.0mm-Ф10.0mm .

10>. The positioning error is less than 0.015 mm

11>. The external dimension (L*W*H)100*90*130cm

12>. The maximal processing board is 600*600mm

13>. Machinable meterial: all kinds of films circuit, Mylar, PVC, Aluminium board and so on.

14>. Computer Control System can be upgrade free for life long

15>. Net Weight 230kg,Gross Weight 250kg

16>. The VoltageAC200V-240V,the Power Consumption 0.35kw

Specification:

Punching thickness:0.1mm-2.5mm(depends on the material)

The largest processing size:600mm*600mm

Punching diameter:StandardФ1.0mm-Ф10.0mm(Can be ordered maximum diameter is 20mm)

The greatest impact:200kg

Air pressure:0.4-0.7mpa
