Shenyang Machinstar Machinery Imp. & Exp. Co., Ltd.
China Manufacturer with main products: Mixer, Granulator, Tablet Press, Capsule Filling Machine, Coating Machine, Blister Packing Machine and Encasing Machine, Bottle Counting... |
| Place of Origin: | Liaoning in China |
|---|
Specifications

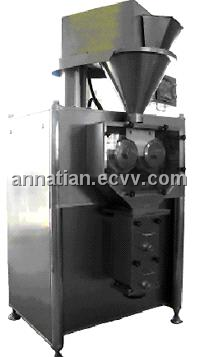

MLGY-200/MLGY-300 Roller Compactor
1. Brief Induction
MLGY200 Roller Compactor is newly developed granulating equipment that integrates material Extrusion-Milling-Regulating. It can produce the powder into granule with desired mesh, as well as to increase the specific gravity and fluidity of granule. No any additive needed in the process of extrusion. With its high automation, easy process, moderate capacity and easy cleaning, it is widely applied in pharmaceutical, food and chemical industry.
2. Usage Condition
◆Applicable to material that is unsteady against moisture and solvent, as well as that may denature in humidity and high temperature.
◆Material Mesh: Natural and blended material that is >60 mesh
◆Cleanly room with Relative humidity ＜ 80%, Room temperature ＜ 35℃.
◆Roller Compactor should be separated when processing flammable and explosive material.
◆ Power Supply: 3AC 380V 50Hz, line N and line PE will not be interfered with each other.
3. Technical Data of MLGY-200
Roller Size Φ x W (mm) | 200×45 | Screw Feeder Motor Power(kW) | 0.75 | |
Granularity (mm) | 0.4-1.5 | Roller Motor Power(kW) | 4 | |
Capacity(kg/h) | 30-120 | Comil Motor Power(kW) | 0.75 | |
Mould Pressure(KN) | 40-120 | Dimension LxWxH(mm) | 1300×1000× 1850 | |
Screw Feeder Speed(rpm) | 40-120 | Rolling Temperature(℃) | 5-50 | |
Roller Speed(rpm) | 6-26 | Weight(kg) | 960 | |
Comil Speed(rpm) | 60-350 | Cooling Water Pressure（MPa） | 0.2-0.5 |
Technical Data of MLGY-300
Roller Size Φ x W (mm) | 350×70 | Screw Feeder Motor Power(kW) | 1.5 | |
Granularity (mm) | 0.4-1.5 | Roller Motor Power(kW) | 5.5 | |
Capacity(kg/h) | 30-250 | Comil Motor Power(kW) | 1.1 | |
Mould Pressure(KN) | 40-140 | Dimension LxWxH(mm) | 1500×1200× 2000 | |
Screw Feeder Speed(rpm) | 40-120 | Rolling Temperature(℃) | 5-50 | |
Roller Speed(rpm) | 4-20 | Weight(kg) | 1200 | |
Comil Speed(rpm) | 60-350 | Cooling Water Pressure（MPa） | 0.2-0.5 |
4. Features
◆Screw Feeder for force feeding, Pre-rolling, Rotary Speed adjustable
◆Optional Screw Feeder for different material
◆Adjustable Hydraulic Pressure for steady rolling and equal density
◆Roller with Cooling System for temperature sensitive material
◆Specially processed Roller with hardness ＞1100 HV
◆Optional Roller for different material
◆Adjust speed ratio of Screw Feeder and Roller for granule of different Hardness or specific gravity
◆Full closed Rolling Chamber with a see-through window
◆Two grades sieves granulation to ensure qualified granule
◆Optional sieves for getting granule with different mesh size
◆Comil and Rolling could be separated for granulation or for rolling flakes
◆Pressure Overload protection
◆Color Touch Screen for automatic display and fault alarm
◆Equipment Parameters, Operation Mode, Password and Storage
◆All contact parts made from Stainless Steel or macromolecule material
