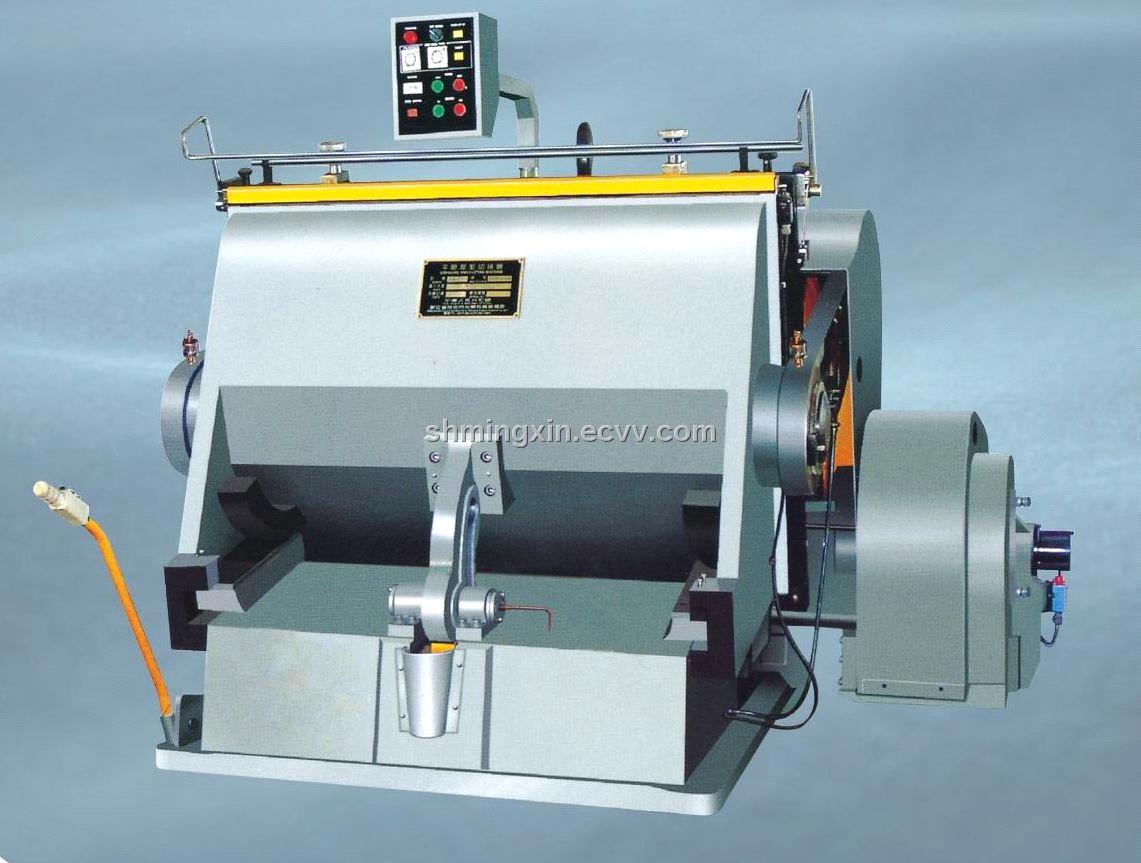

Creasing & Cutting Machine

Supply Ability:	20 Set/Sets per Month
Shipping:	after 30 days when you pay deposit
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Place of Origin:	Shanghai in China
Packaging Details:	wooden box;

Specifications

This machine is designed for creasing and cutting ordinary carboard, corrugated paperboard, plastic, lether and etc.

Model	Inner Chase size	Max. Rule Length	Speed	Motor Power	Machine Weigth	Overall Dimensions
MX-2500	2500×1500mm	< 80m	11±3 Strokes/Min	22kw-6H	20000KG	3680×2500×2580mm
MX-2200	2200×1400mm	< 70m	13 ±2Strokes/Min	15kw-6H	18000KG	3380×2400×2580mm
MX-2000	2000×1400mm	< 65m	13±2Strokes/Min	15kw-6H	16000KG	3180×2400×2580mm
MX-1800	1800×1300mm	< 60m	13±2Strokes/Min	11kw-6H	14000KG	2980×2300×2500mm
MX-1600	1600×1250mm	< 50m	13±2Strokes/Min	11kw-6H	12000KG	2780×2300×2400mm
MX-1500	1500×1040mm	< 48m	14±2Strokes/Min	5. 5kw-6H	7500KG	2550×2100×2000mm
MX-1400	1400×1000mm	< 45m	15±2Strokes/Min	5. 5kw-6H	6800KG	2450×2100×2000mm
MX-1300	1300×920mm	< 40m	16±2Strokes/Min	5. 5kw-6H	6200KG	2350×2100×1950mm
MX-1200	1200×820mm	< 35m	20±2Strokes/Min	4kw-6H	5000KG	2050×2150×1900mm
MX-1100E	1100×800mm	< 37m	20±2Strokes/Min	4kw-6H	4600KG	1950×2150×1850mm
MX-1100	1100×800mm	< 32m	20±2Strokes/Min	4kw-6H	4500KG	1950×2150×1850mm
MX-1040	1040×720mm	< 30m	20±2Strokes/Min	4kw-6H	4000KG	1760×2000×1750mm
MX-1040A	1040×720mm	< 35m	22±3Strokes/Min	5. 5KW-4H	4500KG	2260×1710×1900mm
PYQ203A	930×670mm	< 30m	25±3Strokes/Min	3kw-6H	3500KG	1800×1880×1850mm
PYQ203E	930×670mm	< 30m	23±2Strokes/Min	4KW-6H	3500KG	1750×1980×1700mm
PYQ203C	930×670mm	< 25m	23±2Strokes/Min	4KW-4H	3000KG	1650×1880×1700mm
MX-750	750×520mm	< 15m	25±2Strokes/Min	2. 2KW-6KW	2000KG	1450×1600×1450mm
