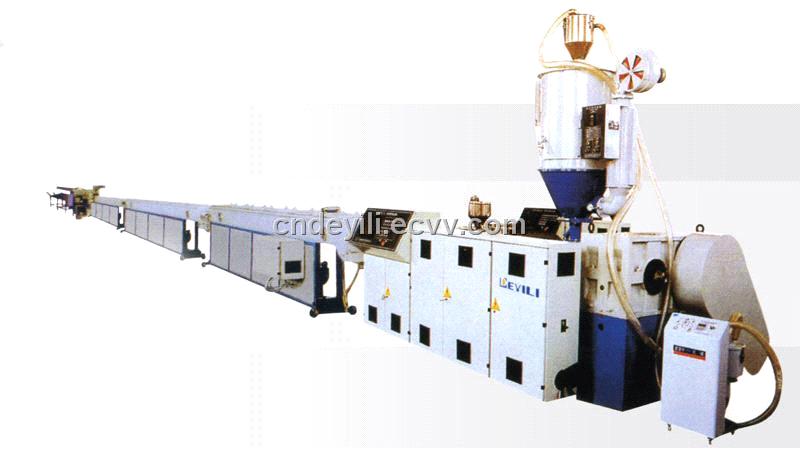

Silicon-core HDPE Pipe Production Line (SGXG-75)

FOB Price:	500,000.00 - 900,000.00 RMB/Set
Supply Ability:	4 Set/Sets per Quarter
Shipping:	60 days

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shandong in China
Packaging Details:	Packaging details: the criterion of packaging: wooden pallet and film coverage for the main machine

Specifications

Brief introductions of Silicon-core HDPE Pipe Production Line:
HDPE three layers composite pipe with inner Silicon-layer pipe is made of PE, the inner layer is silicon layer. Whole line is made up of three extruders, after extrusion from the die-head, the pipes formed, HDPE three layers composite pipes with inner Silicon-layer are mainly used in the protection of cable in network project.
Features:
1)Vacuum calibrator: With auto liquid level and vacuity control system, spray water for cooling made of stainless steel with 24meters
2)Haul-off unit: Equipped with an automatic clamping system, frequency control speed for the stably haul-off.
3)PLC control system for the temperature, extrusion, length set, haul-off and automatic printing.
Main technical parameter:
Model: SGXG-75
Screw dia: 90mm 45mm 30mm
L/D ratio: 34: 1 30: 1 25: 1
Output: 260 40 15
Power: 205Kw
Dia range: 32-75mm
Capability: 3500Km(per year)
Speed: 6-14m/min
Dimention: 40m*3m*2.5m
