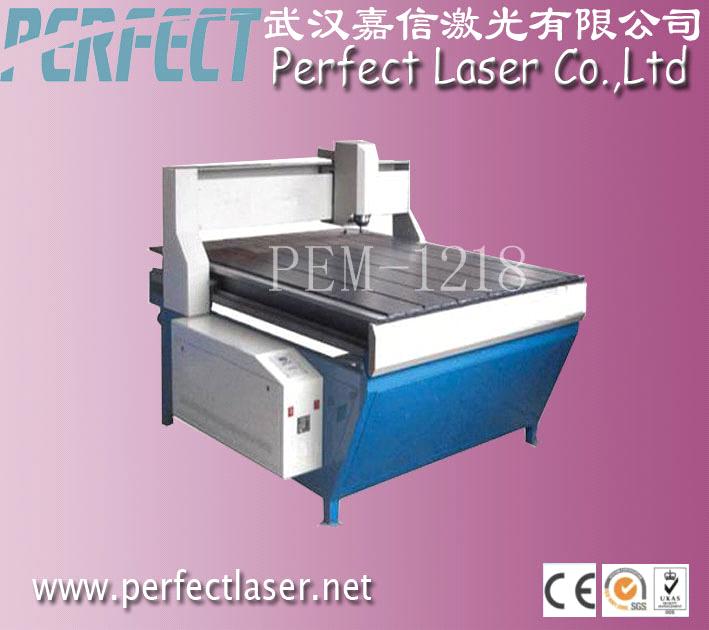

PEM-1218 CNC Router
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 20-30 |
| Payment Terms: | L/C, T/T(Bank Transfer), D/P, Western Union |
Related products from verified members
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | airworth packing/seaworth packing |
Specifications
1. Applicable Fields
CNC Router is widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood/MDF, PVC plastic, plexiglass, acrylic, organic glass, marble, granite, aluminium, copper, steel and many other materials.
The machine body is made from pure Aluminum or pure iron, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the machine. It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers main sizes of marks and labels in the market. It can cut through Plexiglass with thickness of 20mm one time without trouble and can be applied to large-scale relief, too. It is doubtlessly a perfect production in the range of advertising engraving.
2. Product Features
It lands the market with efficient and convenient STUDIO-Pro controlling system. It solves the problems for operating engineers that the processing is troublesome and complex. The complex working procedure such as preparing profiling work piece can be completed by computer 3D Hypothesize. It can ensure the quantity, quality and process easily in one time. The users dont need to worry about the time. With its help, they can complete their tasks easily and unmistakably.
3. Technical Data
|
Power stroke of X,Y,Z axis |
1220×1820×120mm |
|
Size of working table |
1450×2100mm |
|
Power of main axle |
1.5KW |
|
Running location precision of X,Y,Z axis |
+/-0.03mm |
|
Repeating location precision of X,Y,Z axis |
+/-0.01mm |
|
Power stroke of Z axis |
120mm |
|
Working style |
Stepping motor |
|
Spindle speed of frequency conversion main axis |
6000-24000rpm/min |
|
Working voltage |
AC220V/50HZ |
|
Engraving order |
G Code.uoommg |
|
Optional main axis and Cartridge |
φ3.175.φ6 |
|
XY Running sensitivity |
0.02mm |
Company Introduction:
Perfect Laser Co.,Ltd. (China) is a leading high-tech manufacturer of laser and CNC machinery in China, approved by ISO9001 and CE, with 3000 M2 production area and international work group, have rich experience in R&D, manufacturing, sales, exporting and after-sales services.
Our products, provided with stable performance and reasonable price, have been exported to overseas countries.
All of the components we use in the machine are of top quality, which have won us a high reputation worldwide.
Our products, provided with stable performance and reasonable price, have been exported to overseas countries.
All of the components we use in the machine are of top quality, which have won us a high reputation worldwide.
Need more information for this product, please feel free to contact –China Perfect Laser！
