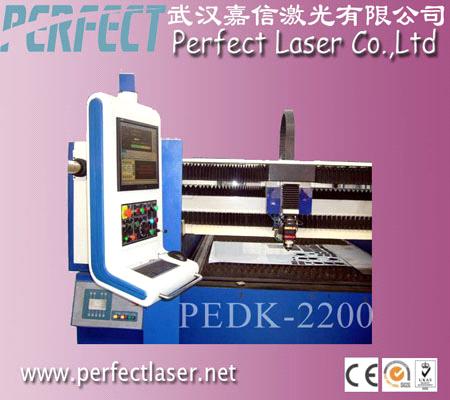

Metal Cutting Machine PEDK-M2200
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 15~20 days |
| Payment Terms: | L/C, T/T(Bank Transfer), D/P, Western Union |
Related products from verified members
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | Airworth Packing/Seaworth Packing |
Specifications
Applied Field :
Perfect Laser PEDK-M2200 adopts the 2200W laser power to achieve precise cutting for metal material. It's cutting edge is smooth and beautifully formed. It can do precise cutting on 15 mm Mild steel, 6 mm stainless steel, 3 mm aluminum, zinc, brass and other metal materials. It has excellent processing for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
Perfect Laser's Laser Metal Cutting Machine adopts the high efficient CNC numerical control software, PC controller; it has the merits of powerful software, simple operation, full compatibility with the CAD, CAXA software, easy maintenance. It is the high-performance laser processing equipment with prospective broad application.
Metal has good absorption on the wavelength of 1064 nm laser, and therefore almost all the surface of the metal can be sculptured. It is widely used in hardware, precise machinery, automobile components, glasses, clocks and watches, precise cutting, medical equipment, instrumentation, and other metal-related industry.
Product Features:
1. High power, deep cut, high accurate, more effective, non-contact cutting, applicable to the precise accessories cutting.
2. Superior edge quality with maximum cutting speed.
3. High precision driven box using World Leader-Top Quality Rack & Pinion Drive Technologies and Gearbox.
4. Advanced European dual processor CNC system for axes movement.
5. Direct laser control with PWM (Pulse Width Modulation).
6. 5.0” and 7.5” Focal Length High Pressure Lenses with Digital focus adjustment.
7. Automatic Gas Assist System.
8. Advanced Cutting Head anti-collision device.
9. Pallet shuttle system with two 3050mm by 1550mm working pallets.
10. Windows? Driven Control Software with Materials Parameters Database.
11. Fully Interlocked Safety Enclosure on cutting table
12. Advanced Metal Cutting Post Processor software (Lantek, Alma, AutoCAD)
13. Quick and easy installation with no special foundation require
Technical Data:
|
Table Travel |
In (mm) |
X Axis 120 (3000) |
|
Y Axis 60 (1500) | ||
|
Z Axiz 6 (150) | ||
|
Maximum Speed |
Ipm (m/min) |
2800 (70) |
|
Maximum Cutting Thickness |
mm |
15 Mm Mild Steel
6 Mm (With Standard 7.5 Lens) Stainless Steel
3 Mm Aluminum |
|
Maximum Acceleration |
|
0.7g |
|
Static Accuracy (Vdi 3441) |
In/In (mm/mm) |
0.0015/60 (0.038/1500) |
|
Repeatability |
In (mm) |
0.0006 (0.015) |
|
Load Capacity |
Lbs (Kg) |
1,800 (800) |
|
Overall System Weight |
Lbs (Kg) |
14,300 (6500) (Including Pallet Server) |
|
Useful Life Time |
Years |
25 |
|
Optional Working Area |
300mm×300mm
600mmX600mm
700mmX700mm
1.0Mx1.0M
1.5Mx1.5M
1.2x2.5M
3.0Mx1.5M |
300mm×300mm
600mmX600mm
700mmX700mm
1.0Mx1.0M
1.5Mx1.5M
1.2x2.5M
3.0Mx1.5M |
Perfect Laser PEDK-M400 can offer different working size according to your special requirement.
Company Introduction:
Perfect Laser Co.,Ltd. (China) is a leading high-tech manufacturer of laser machinery in China, approved by ISO9001 and CE, with 3000 M2 production area and international work group, have rich experience in R&D, manufacturing, sales, exporting and after-sales services.
Our products, provided with stable performance and reasonable price, have been exported to overseas countries.
All of the components we use in the machine are of top quality, which have won us a high reputation worldwide.
Our products, provided with stable performance and reasonable price, have been exported to overseas countries.
All of the components we use in the machine are of top quality, which have won us a high reputation worldwide.
Need more information about it？Please send inquiry to us Right Now to–Perfect Laser！
