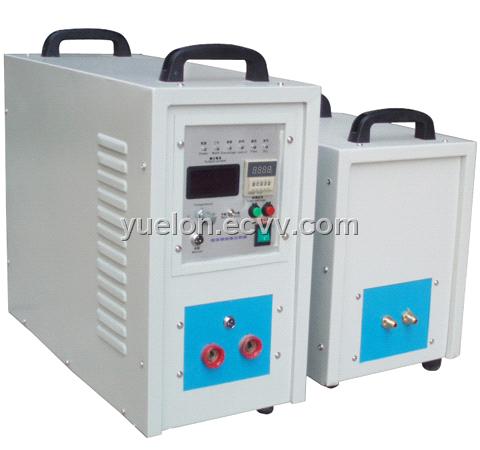

High Frequency Induction Heating Machine - 45KW

Payment Terms: T/T(Bank Transfer), Western Union
Place of Origin: Zhejiang in China
Packaging Details: ;

Specifications

Specifications:
1, Model. HF-45AB
2, Maximum input power: 45KW
3, Oscilating frequency: 30-80KHZ
4, Input voltage: 380V, three phase, 50 or 60HZ
5, cooling water: 0. 2Mpa, 8L/min , Water temperature: < 40oC
6, duty cycle: 100%
7, Timer of the HF-45AB model: heat time, retain time, cool time: 1-99second
8, cable length of the separated model: 2meters
9, weight and size
Model
N. W/G. W kg
SIZE LxWxH mm
Packing size LxWxHmm
HF-45AB controller
39kg/44kg
600x260x500mm
700x360x600mm
HF-45AB transformer
38kg/43kg
510x270x400mm
610x370x500mm
Main characteristics:
1, IGBT module and inverting technologies of second generation been used; higher reliability and
    lower maintenance cost.
2, 100% duty cycle, continuous working is allowed at maximum power output.
3, Constant current or constant power status can be selected accordingly to achieve higher heating efficiency.
4, Display of heating power and heating current and oscillating frequency;
5, Simple to install, installation can be done by unprofessional person very easily;
6, Light weight, 77KG only;
7, Advantages of the model with timer: the power and the operating time of the heating period and
    the retain period can be preset respectively, to realize a simple heating curve, thie model is suggested
    to use for batch production to improve the repeatability.
8, The separated models are designed to fit the dirty surrounding of some cases.
