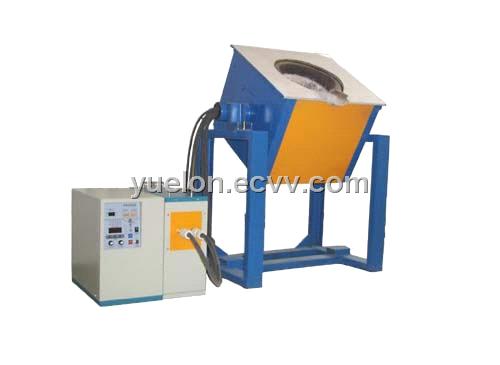

Metal smelting Machine Medium Frequency Induction Melting Furnace (MF-90)

FOB Price: 6,900.00 - 9,000.00 USD/Set
Supply Ability: 200 Set/Sets per Month
Shipping: within 7-10 days after getting payment.
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: plywood case

Quick Details

  • Warranty: 12 months
  • Certification: CE
  • Power(W): 90KW
  • Voltage: 3 phase 380V
  • Model Number: MF-90
  • Brand Name: Yuelon
  • Usage: Melting Furnace
  • Type: Induction Furnace
  • Condition: New

Specifications

The composing of medium frequency melting furnace:

1.Medium frequency induction heating power supply
2.Melting furnace
3.Compensation capacitor


The melting time is about 50-60 minutes for the first furnace (cold furnace) , and then it only need about 20-30 minutes for the later melting when the furnace is already hot.

Main models and applications:
Model
max melting capacity
of ferrous metal
Max melting capacity of
copper, gold, silver or bronze
MF-15  15KW furnace
5kg or 10kg
MF-25  25KW furnace
4kg or  8kg
10kg or 20kg
MF-35  35KW furnace
10kg or 14kg
20kg or 30kg
MF-45  45KW furnace
18kg or 22kg
40kg or 50kg
MF-70  70KW furnace
28kg
60kg or 80kg
MF-90  90KW furnace
50kg
80kg or 100kg
MF-110 110KW furnace
75kg
100kg or 150kg
MF-160 160KW furnace
100kg
200kg or 250kg

Features:
1.Installation and operation can be very easily learned;
2.Portable and light weight;     occupies less than 1. 0 square meters;
3.24hours continuously work ;
4.High efficency, Energy saving and environmental protection;
5.It's easy to change furnace to melt different materials.

compard the MF melting furnace between HF melting furnace:
Melting of gold , silver and copper
Model
Max. melting capacity per Furnace
of gold, silver & copper
HF-15
less than 2KG
HF-25
less than 4KG
MF-15
10KG
MF-25
20KG
MF-35
40KG
MF-45
70KG
MF-70
100KG
MF-90
120KG
MF-110
150KG
MF-160
250KG

2 Melting of steel and stainless steel
Model
Max. melting capacity per
Furnace of steel & stainless steel
HF-15
less than 0. 5KG
HF-25
less than 1KG
MF-15
4KG
MF-25
8KG
MF-35
12KG
MF-45
18KG
MF-70
28KG
MF-90
45KG
MF-110
60KG
MF-160
100KG

3 Melting of aluminum
Model
Max. melting capacity of
steel & stainless steel
HF-15
less than 0. 5KG
HF-25
less than 1KG
MF-15
3KG
MF-25
6KG
MF-35
12KG
MF-45
21KG
MF-70
30KG
MF-90
40KG
MF-110
50KG
MF-160
75KG


characteristics of melting by high frequency machine:
1. For little quantity melting. Melting time is about 2 to 6minutes.
1.Simple machine structure, and easy operation.
characteristics of melting by medium frequency machine:
1.Better heating penetration and even temperature inside the melting metal.
2.MF field force can stir the melting pool to achieve better melting quality.
3. Melting the maximum quantity by the recommended machine according to above table.


We offer complete service :

Before sales
Our professional technical recommend the right machine,and can also customise special machine as your requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine.
Provide long-terms technical support.

Contact Us
Our induction machine are 100% solid state design for unsurpassed reliability, advanced technology.
Induction heating equipment for industrial applications on all types of metal parts, let induction heating to work for you. Describe your workpiece and requirements, we will provide you with our best advice.

Welcome to enquiry further information and details, any questions or technique support. Please feel free to contact us directly.
