Single Face Metal Detector for Fabric Inspection Machine

Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Quick Details

Brand Name: BJTOPTECH
Warranty: 12 months
Certification: CE
Power: 50
Power supply: 220V

Specifications

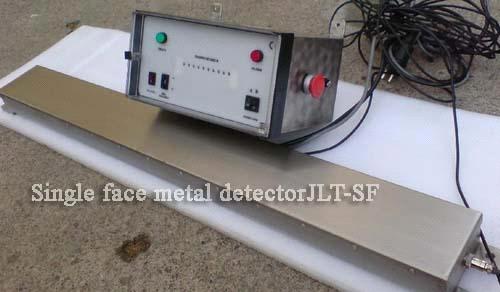

Single Face metal detector for fabric inspection machine

[FEATURES]
1.Stainless steel shell.
2.Sensor made from high quality magnetic material.
3.Hi-stable design can be installed on Fabric inspection machine.
4.Touch-button integrated control panel.
5.10 LED indicate Sensor Lever.
6.SMD technology.

Single Face metal detector for fabric inspection machine

[PURPOSE]
Designed for bed sheet,cloth and down-filled coat use.

[SPECIFICATIONS]
Model: JLT-SF
Detection method: Magnetic induction
Detection sensitivity: Max 110mm height by steel needle(0.6*L33)
Detection adjustment: 8steps
Detection Width: 2020*100mm
Alarm method: Buzzer,Lamp
Power source: AC85-265V 45-65HZ
Rated output: Appr25W
Dimension: Sensor: 2200mm(L)*100mm(W)*45mm(H)
               Control: 280mm(L)*265mm(W)*105mm(H)
Weight: Sensor: 33Kg Control case: 2.65Kg

Single Face metal detector for fabric inspection machine
