Home >Products Catalog > Optical Fiber Splice Closure

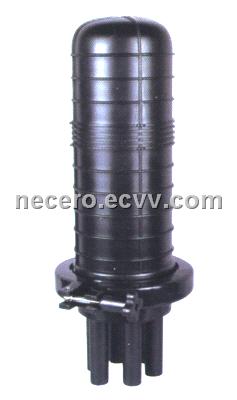

Optical Fiber Splice Closure

Inquiry Now

Place of Origin:	Guangdong in China

Specifications

·Specification 指标

Item No.	In-out number 進出纜數	MAX Capacity (Fibers) 最大容量	Dimension 外形尺寸（mm）	Cable Diameter 進出纜徑	Gross Weight 毛重（Kg）	Sealing structure 密封結構	Normal Configure 基本配置
1	2-2	72（6×12） 96（6×16）	Φ260×500	Φ7~20	4	Silicon rubber 硅橡膠	24
2	3-3	48（4×12）	Φ210×460	Φ7~22	4	Silicon rubber heat shrinkable protective sleeve 硅橡膠或熱縮管	24
3	3-3	72（6×12） 96（6×16）	Φ260×500	Φ7~20	4	Heat shrinkable protective sleeve 熱縮管	24
4	4-4	216（6×36）	Φ278×500	Φ7~23	7	Heat shrinkable protective sleeve 熱縮管	36
5	3-3	96（4×24）	Φ210×567	Φ7~23	5	Heat shrinkable protective sleeve 熱縮管	24
6	4-4	252（7×36）	Φ278×580	Φ7~23	7	Heat shrinkable protective sleeve 熱縮管	36
7	3-3	216（6×36）	Φ278×580	Φ7~23	7	Heat shrinkable protective sleeve 熱縮管	36
8	2-2	72（6×12） 96（6×16）	Φ260×590	Φ7~20	7	Silicon rubber 硅橡膠	24

Learn more >
