Product Details

Place of Origin:	Liaoning in China

Specifications

INTRODUCTION

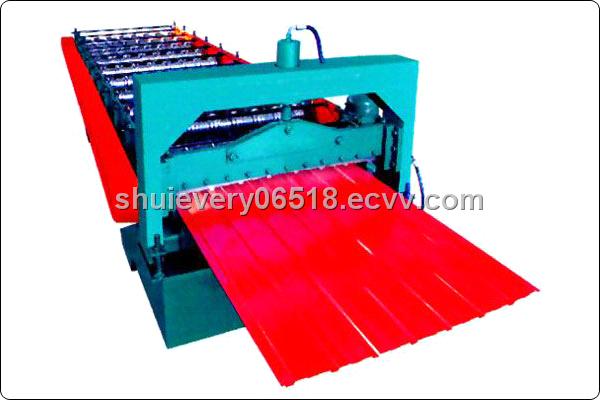

Flat Sheet Forming Machine is the equipment to press, through rolling and cold bending, the colored steel sheet with thickness of 0.3~1.0mm into all kinds of wave pattern sheet. The machine is suitable for the use of building, warehouse, roof board, interior wall board, external wall board, decoration, etc. and has the following characteristics: having light weight, high strength, rich colors, and being earthquake-proof and fireproof, etc. Now the machine is widely used.

FEATURES
1. In order to meet the requirements to use all kinds of colored sheet and materials (high and low strength sheet), our company improves the design of the forming press and adds a herringbone roller between wave crests of profile, which makes pressed sheet flat, beautiful appearance and increase the strength of the flat sheet.
2. All the rollers are forged from the high quality steel and are processed intensely through high frequency hardening and quenching and tempering. The surfaces of the rollers are plated with hard chromium. The rollers are smooth and wear proof.
The computer controls the length and the measurement, which is reliable and laborsaving.

Main types(We have more than one hundred different profiles)

Types	Width of the coil	Width of the formed sheet	The depth of the groove	Thickness of the coil	Usage
SX-840	1000mm	840mm	25mm	0.3-0.6mm	Widely used as roof Could used as wall
SX-900	1000mm	900mm	15mm	0.3-0.6mm	Widely used as wall
SX-930	1000mm	930mm	14mm	0.3-0.6mm	Widely used as wall
SX-1000	1250mm	1000mm	35mm	0.5-0.8mm	Widely used as roof, the final price is according to your profile

Note: Other dimensions or types are also OK.

With your drawings, we can desgin and produce any kind of Flat Sheet Roll Forming Machine within a month. If you need irregular types, we are your best choice.
