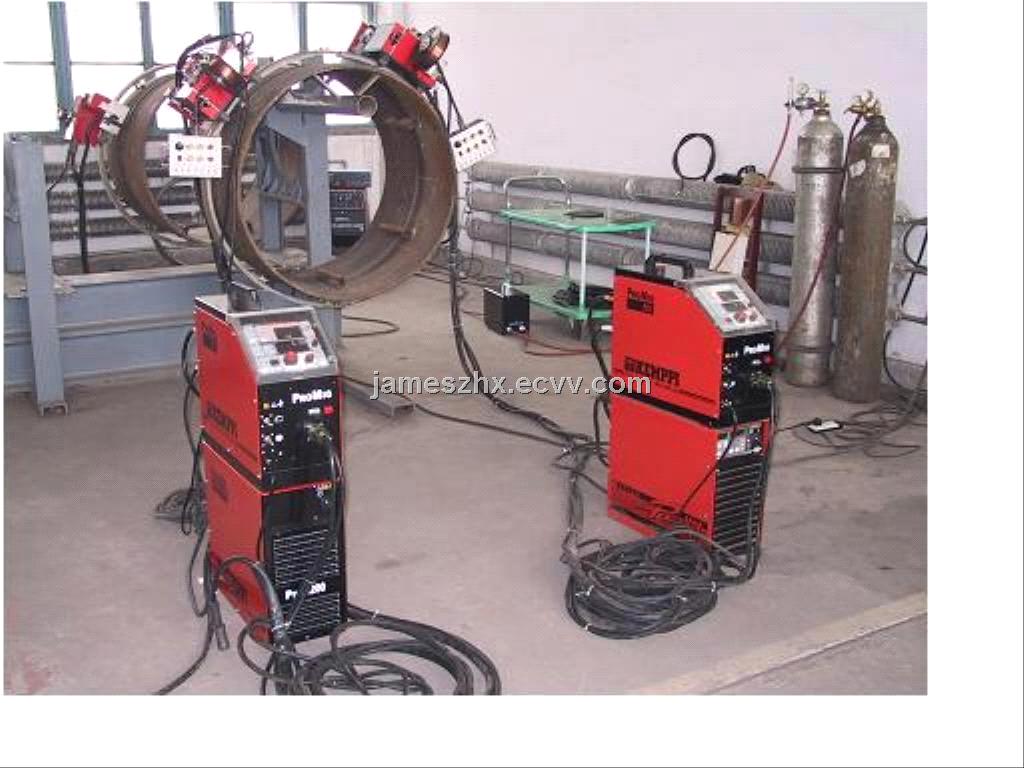

Piping All-position Automatic Welding Machine (FCAW/GMAW)
| FOB Price: | 80,000.00 - 100,000.00 USD/Fob Shanghai |
|---|---|
| Shipping: | 1 month |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden case |
Specifications
Piping All-position Automatic Welding Machine (FCAW/GMAW)
Model:PCAWM-56A1
Performance Characteristics
1. In-line performance Non-assembly line method online equipment
2. Applicable Range: It is better used to weld thick wall prefabricated welds which have longer diameter.
3. Automatic level: Better (Input all of the welding information (parameter) before welding, and it also can control the machine when it is working)
4. Demand of beveling: After use STT semiautomatic welding to render, you can use this machine to weld.
5. Welding Production capacity: Better (150-250 inch per day)
6. Operability: Excellent / Better (it will cost some time to learn welding)
7. Surface shaping: Better (welding always goes along with the rotation rail)
8. Welding qualification ratio: over 96% (basically no re-welding work occurs if the welding skills are mastered)
9. Driving reliability: Excellent (lathe is forced forward along the rail)
10. Relative price: much higher than that of the automatic pipeline prefabrication welding machine
Technical parameter
1.Applicable pipe diameter: DN300-1400
2.Applicable wall thickness: 6-80MM
3.Applicable materials: carbon steel, alloy steel, stainless steel and low temperature steel etc.
4.Applicable welding seams Have a big space, that make it easy to install the railway of the pipe welding.
5. Nose Production capacity 120W
6. Travel speed 0-36mm/h
7. Swing range 2.5-30mm
8. Swing speed 0-42mm/S
9. Align???70mm
10 Remaining time 0-2s
11 Welding wave: Triangular wave, trapezoidal wave, rectangular wave, and straight line
12 Weight of nose 12kg
13. Height of welding gun 0-80mm
14. Angle of welding gun? 0-360°
15. Loading welding arc 5kg
