Changshu Jiulong Horse Knitting Machine Co., Ltd.

China Manufacturer with main products: Fully Computerized Flat Knitting Machine, Hand Driven Flat Knitting Machine, Dial Linking Machine, Textile Machinery Spare Parts.

Home  >Products Catalog > Computerized Flat Knitting Machine (JLH-252S)

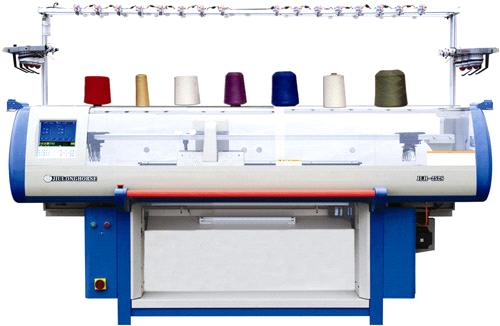

Computerized Flat Knitting Machine (JLH-252S)

FOB Price: 18,000.00 - 20,000.00 USD/Set
Supply Ability: 800 Set/Sets per Month
Shipping: 30 DAYS AFTER THE RECEIPT OF YOUR L/C OR T/T.
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Place of Origin: Jiangsu in China
Packaging Details: STANDARD EXPORT WOODEN PACKING

Specifications



Model
JLH-152S
Needle bed
Length: 52〞
The steel needles are inserted on the needle bed. Replaceable Segment can be available when broken down.
Knitting width
Variable stroke. Max 52〞(132mm)
Gauge
3G, 5G, 7G, multi-gauge3-5-7G, 8G, 9G, 12G, 14G, 16G
Knitting speed
Knitting speed varies according to gauge and knitting condition. MAX. 1.2m/sec., 32 speed selection programmable command control.
Knitting system
One carriage with single system equips with high-position roller
Knitting cam
Composite design. Each system can perform Loop+tuck+not knitting simultaneously.
Transfer cam
Compound Knitting cam system, each system can transfer from the front to rear, rear to front or both front and rear simultaneously without direct restriction . Auto racking and auto receive.
Stitch cam
Each stitch setting is controlled by a stepping motor . It has 24 stitches of independent selections and each of them range from 00-99 steps for knitting pattern.
Needle selection
Each system has 4 sets hi-tech needle selectors. Double cam system equips with totally 8 sets needle selectors, which can be installed or removed simply from the carriage and maintained easily.
Yarn carriers
8 sets yarn carriers on 4 double side rails, switchable in any area within the knitting width. Also can be equipped with intarsia yarn carrier for intarsia pattern. (Optional device).
Sinker system
This system composes by two additional pieces of sinker needle bed. The sinker presser degree is adjustable the positions by knitting program command.
Racking system
Servo motor control, the programmable racking positions within 2 inches, each also has 1/4, 1/2and 3/4 micro adjustable positions.
Main take down roller
32 levels changeable tensions selection, adjustable automatically on each level. Can change the roller tension on the operation panel.
Carriage drive system
AC servo motor control, tooth shape driving belt, 32 section speeds limited built in. Knitting speed can be changed flexible depends on the knitting requirement.
Stop motion
Yarn breaking, knot, press off, needle break, yarn float, roll back, wrong racking, wrong sinker position, needle shock, excessive yarn, and reaching on production target offer, the machine will automatically stop.
Controller
Built-in controller. Data input by hand or USB memory disc. Stored program for flat knitting machine.
Memory capacity
1024× 4096 hung memory for the width and pattern length design.
Data input
USB memory interface.
Language display
English and Chinese are standard versions. Other languages can be supplied with customer’ s request. (Optional software)
Power supply
One phase AC 220V 1.2 KVA
Dimension & Weight
Length*Width*Height: 290*90*200cm. Net weight: 1400kg.

All the contents of this catalogue are subject to change without notice.
