Jiangyin Sanben Technology Co., Ltd
China Manufacturer with main products: Spiral Tube Forming Machine, Roll-and-shear metal tube former, Spiral gas tube forming machine, Spiral Tube former, Aluminum Flexible Duct... |
Related products from verified members
| Place of Origin: | Jiangsu in China |
|---|---|
| Packaging Details: | WOODEN CASE |
Specifications

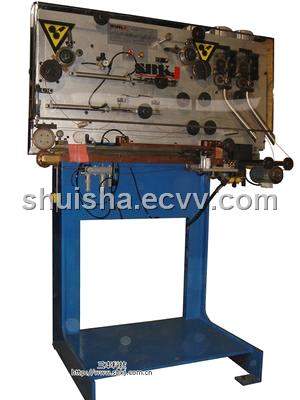

Seam welders are used for longitudinal welding of rolled sheet metal envelops like vessels and tanks. A particular application is continuous strip welding. Perfect mechanical positioning of the work pieces has to be ensured by an adapted clamping device allowing butt welding up to a wall thickness of 8 to 10 mm in conjunction with the Plasma keyhole process. TIG/GTAW cold/hot wire and MIG-MAG/GMAW are complementary welding processes. The seam welder is interfaced with our NC-weld control and becomes part of the integrated fully synchronised system.
Main technical data
|
Diameter range |
100mm ~ 1500mm
Smaller arm available |
|
High range |
50mm-1000mm
longer arm available |
|
Sheet thickness |
0.4mm-1.2mm |
|
Welding speed |
4-12m/min |
|
Seam overlap |
6mm |
|
Machine power |
55 KVA |
|
Power supply |
3PH/380V/50HZ |
|
Fuse |
3*120A |
|
Compress atmosphere |
0.6Mpa |
|
Diameter of wire |
1.8mm |
|
Net weight |
1100kg |
|
Gross weight |
1150kg |
|
Package dimension |
1800mm*1300mm*2500mm |
|
Machine dimension |
1850mm*1350mm*2600mm |
