Electronic Potting Silicone Rubber

FOB Price:	12.80 - 20.00 USD/Kilogram
Supply Ability:	10 Ton per Day
Shipping:	Within 3 days after getting your bank receipt
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	25kg,200kg per pail

Quick Details

Brand Name: Hong Ye Silicone rubber
Model Number: HY9055
heat-conducting: low viscosity
Inherent Flame resistence: waterproofing

Specifications

Electronic Potting Silicone Rubber Grey Color

Applications & Features:

It can be vulcanized under room temperature or high temperature with low viscosity, easy mixing and pouring, and it is applicable to bulk pouring with excellent electrical performance. It is applicable to sealing, bonding, coating for electronic parts.

Typical Application

- high powered electronics,

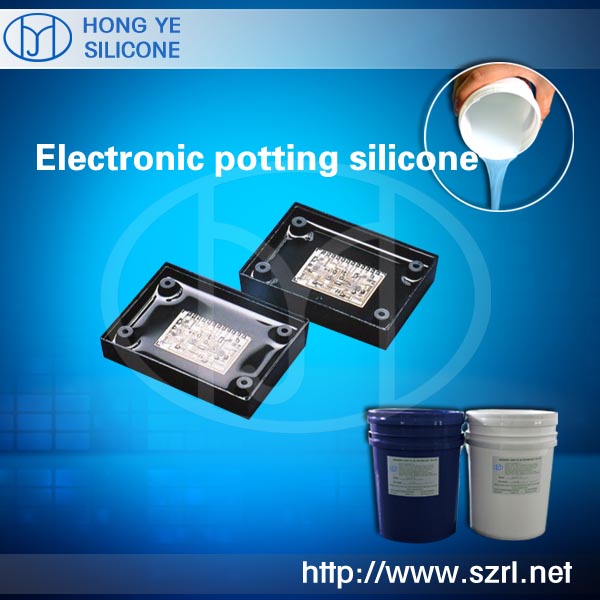

- DC/DC module and circuit board which requires heat dissipation and high temperature resistance.

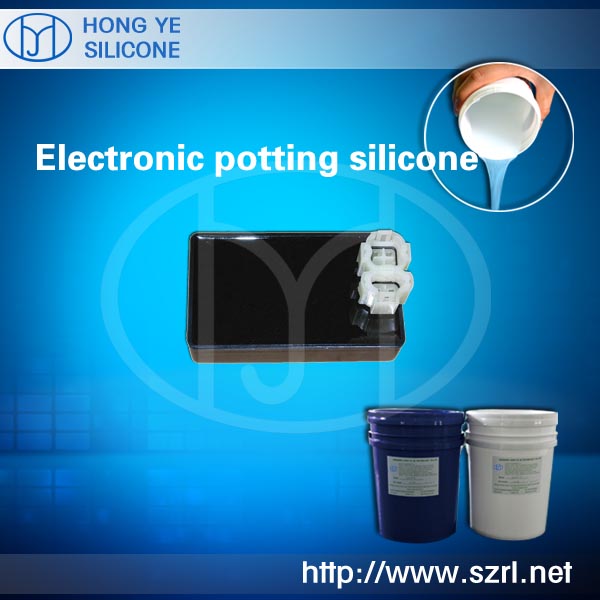

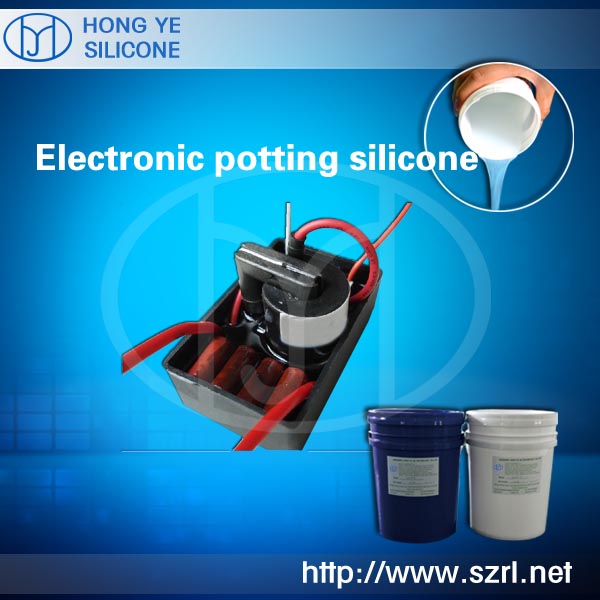

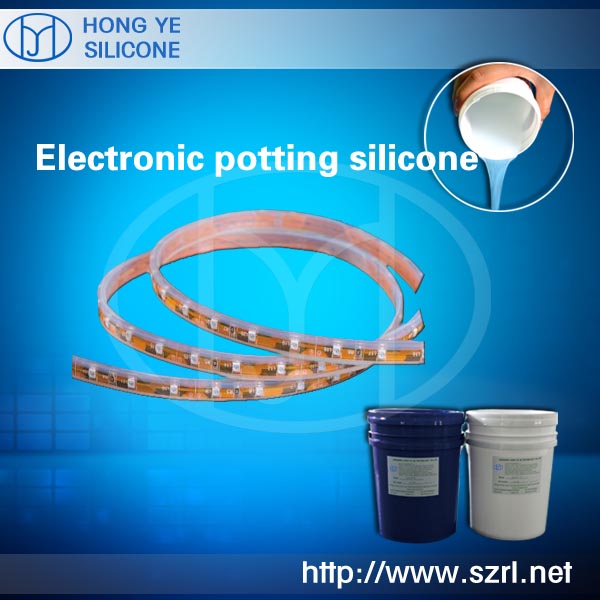

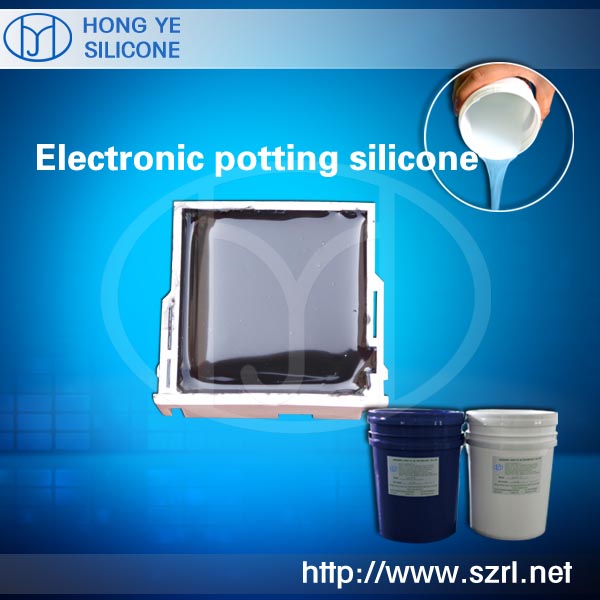

It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.

Parameters:

Model	9055#
Grade	General Purpose
Components	A	B
Color	Grey	White
Mixing Ratio	1	1
Viscosity Pa. S	2.5+/-0.5	2.5+/-0.5
Pot Life(Min/25° C)	60-90
Curing Time(Min)	25° C/180 or 80° C/20
Hardness(Shore A)	55+/-5
Dielectric Strength (kv/mm)	≥ 25
Elongation Break(%)	-
Volume Resistance(Ω )	≥ 1.0X10¹⁵
Dielectric Constant(1.2mhz)	3.0-3.3
Voltage Resistance(KV. MM^-1)	-
Temperature Resistance(° C)	-60 ~200
Flame Retardant	UL94-V1

Features

No toxicity, solventless, no odor or cure by-product.
Equal amount of mixing ratio, good fluidity, easy processing.
No significant exotherm or shrinkage during curing.
Flexible curing schedule, can be cured at room temperature (R. T. ) or at elevated temperature.
Very stable to changes of temperature, stability over wide temperature range (-50 to 200 ^oC).
Good thermal conductivity.
Excellent dielectric properties for maintaining and protection of existing electrical insulation requirements.
Excellent weather resistance and waterproof property for protection from moisture and dust contamination.
Relative easier removal benefits to repair of electrical/electronic devices
Green environmental protection.

Using instruction:

1. Pls put part A and part B in separate container and stir evenly before mixing the two part together.

2. Weight Ratio: part A: part B = 1:1

3. Deaeration the mixture under 0.08 MPa for 5 minutes.

4. Operate accordingly to above technical form, When under too low temperature and thick layer of sealant, we suggest customers appropriately heat the mixture to accelerate vulcanization, such as 80~100° C

Packaging, storaging and transportation:
1. This product need to be packed in clean, dry and sealed steel cans or drums. Part A and B need to be packed seperately. Usually it is packed in 5kg/can, 20 kg/drum, or 200 kg/drum .

2. The product should be stored in a cool dry place, avoid the sun and rain, and kept away from fire and heat source.
3. The goods is NOT subject to IMDG. The shelflife is 18 months from the date of production. And it still can be used after expired, when retest to be qualified.
