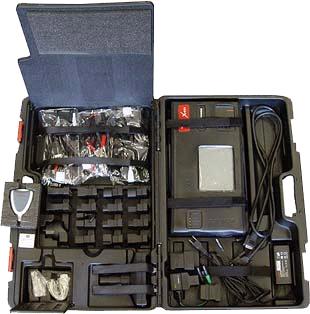

X431 Scanner

Description:
X431 auto scan tool is a new generation of product developed by Launch Tech. It's a perfect marriage between automotive electronic technology and information networking. X431 adopts open diagnostic technology, which is the most advanced in the world as well as the future of automotive diagnosis. It carries PDA functions apart from reading trouble code, data stream and actuation test, sensor waveform and digital code control.

Character:
To interface with computer with X431-PCLINK (optional) to store test data in vehicle service record;
To simulate and test sensors with the help of sensorbox (optional);
To test the parameters of the battery and cnduct analysis on battery conditions through batterybox (optional);
To print out test data any time with built-in printer;
Easy operation through handwriting input on large touch screen;
As generic diagnostic equipment, it can interface with diagnostic adaptors of all vehicles models in the world;
Strong test capacity to cover all electronic systems;
Unique reading of date stream to ensure fast date updating;
Strong waveform display to monitor any change in the data stream;
Embedded operation system and open-platform diagnosis to make effective diagnosis possible;
Integrated adaptors featuring compact design and reliability;
Complete after-sales service system to give life-long service;
Multi-language choices and easy update via the Internet

Parameter:
 Operation System: Linux
 CPU: 32-bit processor
 CF card: 512M
 Interface: Standard serial/ parallel port
 Power: DC12V
 Output: Approx. 9W
 Printer: Mini thermo printer
 Printer interface: Standard parallel port
 Screen: 240*320 LCD touch screen with backlight
 Structure: main units, Smartbox and mini printer

 X-431 Software List:
1 Benz diagnostic software
2 BMW diagnostic software
3 Volkswagen diagnostic software
4 Audi diagnostic software
5 Skoda diagnostic software
6 Seat diagnostic software
7 Volvo diagnostic software
8 Citroen diagnostic software
9 Peugeot diagnostic software
10 Fiat diagnostic software
11 Opel diagnostic software
12 Renault diagnostic software
13 Landrover diagnostic software
14 Porsche diagnostic software
15 Ford diagnostic software
16 Romeo diagnostic software
17 Lancia diagnostic software
18 Rover diagnostic software
19 Saab diagnostic software
20 Transporter&V-Class diagnostic software
21 Toyota diagnostic software
22 Nissan diagnostic software
23 Honda diagnostic software
24 Mitsubishi diagnostic software
25 Mazda diagnostic software
26 Isuzu diagnostic software
27 Suzuki diagnostic software
28 Subaru diagnostic software
29 Daihatsu diagnostic software
30 Daewoo diagnostic software
31 Hyundai diagnostic software
32 Kia diagnostic software
33 Ssangyong diagnostic software
34 Ford diagnostic software
35 GMdiagnosticsoftware
36 Chrysler diagnostic software
37 SMART diagnostic software
38 EOBDII CAN diagnostic software
39 Smart OBDII diagnostic software
40 Demo Software
