Granite Segments (XHDS-120076)

Supply Ability:	10,000,000 Set/Sets per Year
Shipping:	ACCORDING THE ORDER
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Fujian in China
Packaging Details:	PAPER AND WOOD CARTOON

Specifications

The segments are attached to the core by brazing with silver solder and fixed on circular blades, gang saws and circular multi-blade cutters;

High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;

Segment for diameter 100mm to 3500mm blade;

Specifications supplied by customers are available;

High cutting efficiency and long life;

Segment can be produced for cutting granite, marble, sandstone, limestone, andesine, asphalt, tile, concrete and others. Our diamond segments are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.

Inch (in)	Diameter (mm)	Segment dimension LxWxH (mm)	CORE Thickness	Segment NO.	Application
10	250	40×2.5×10	1.8/2.0	18	For trimming and processing granite, marble slab, tile & others.
12	300	40×3.0×8/15	1.8/2.2/2.4	21
14	350	40×3.2×8/10/12/15	1.8/2.2/2.4	24
16	400	40×3.4×8/10/12/15	2.2/2.6/2.8	28
18	450	40×4.0×8/10/12/15	2.5/2.8/3.3	32
20	500	40×4.2×8/10/12/15	3.0/3.3	36
22	550	40×4.2×10/12/15	2.8/3.5	38
24	600	40×4.6×10/12/15	2.8/3.5	42
28	700	40×5.0×10/12/15	3.6/4.0	46
32	800	40×6.0×10/12/15	4.5	50
36	900	23.5×6.8/6.0×12/15	5.0	64
40	1000	24×6.8/6.0×12/15	5.0	70
44	1100	24×7.4/6.8×12/15	5.5	74

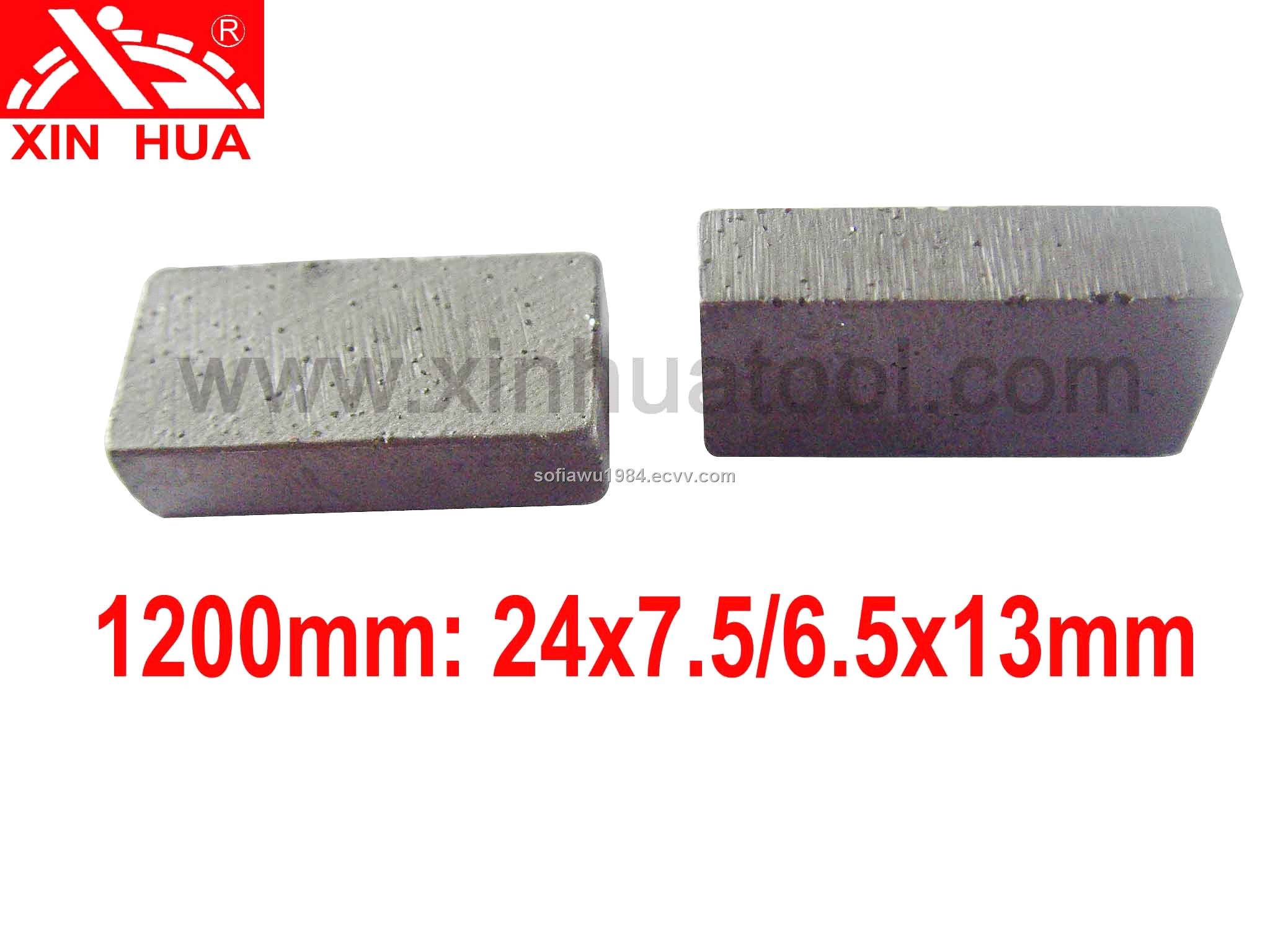

48	1200	24×7.5/6.5×12/13/15	5.5	80
52	1300	24×8.2/7.6×12/13/15	6.0	88
56	1400	24×8.6/7.8×12/13/15	6.5	96
64	1600	24×9.4/8.4×12//13/15/20	6.5	108
72	1800	24×10/9×12/15/20	7.0	120
80	2000	24×10.7/9.7×15/20	8.0	128
88	2200	24×11/10×15/20	8.5	136
110	2500	24×11.5/10.5×15/20	9.5	140
120	3000	24×12.5/11.5×20/30	10	160
140	3500	24×13.5/12.5×20/30	11	180
