Shenzhen CISBO Technology Co., Ltd.
China Manufacturer with main products: Car Parking Sensor, Car Camera, Car Rearview System, Car Reverse Mirror, Car Revese Video Parking Sensor |

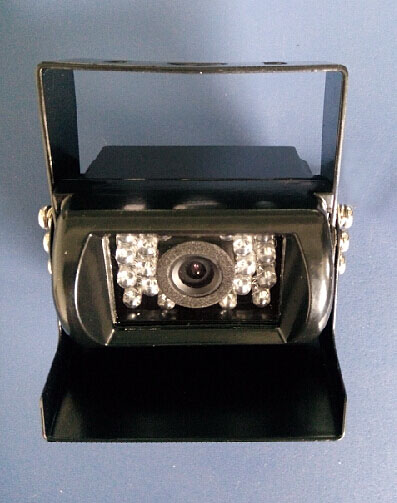

Heavy Duty Infrared Night Vision Car Reverse Camera
| FOB Price: | 1.00 - 18.00 USD/Set |
|---|---|
| Supply Ability: | 20,000 Set/Sets per Month |
| Shipping: | 3-7 work days for sample and small order,20-25 working days by sea |
| Payment Terms: | L/C, T/T, Western Union, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Whtie box or print according to your requirement |
Quick Details
- Warranty: 2Years
- Model Number: SB117
- Brand Name: CISBO
- Car Make: Bus
- Power: 2.4w
- Voltage: DC 12V
- Type: Reverse Camera
Specifications
SPECIFICATIONS:
Image Pick-up Device 1/3" SHARP COLOR CCD
Horizontal Resolution 420 TV Lines
Number of Pixels NTSC:510(H)×492(V); PAL:500(H)×582(V)
Scanning System NTSC:525 Lines,60 Field/sec,
PAL: 625 Lines 50 Field/sec
Sync System Internal Synchronization
Gamma Characterlstic 0.45
S/N Ratio ≥48dB(AGC Off)
Electronic Shutter Time On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination 1 Lux(F:2.0),0 lux with built-in IR LED
IR projecct distance 15 meters(18 Unit Infrared LED)
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Lens Board Lens 3.6mm/F2.0(optional)
Video Output 1.0Vp-p 75 ohm
Gain Control(AGC) Auto
Cable BNC JACK
Water resistance IP66
Operation Temperature -10℃～+50℃ RH95% Max
Storage Temperature -20℃～+60℃ RH95% Max
Power Supply DC12V±10% 600mA
Dimension 75(W)X45(D)X75(H)mm
Weight 300g
Horizontal Resolution 420 TV Lines
Number of Pixels NTSC:510(H)×492(V); PAL:500(H)×582(V)
Scanning System NTSC:525 Lines,60 Field/sec,
PAL: 625 Lines 50 Field/sec
Sync System Internal Synchronization
Gamma Characterlstic 0.45
S/N Ratio ≥48dB(AGC Off)
Electronic Shutter Time On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination 1 Lux(F:2.0),0 lux with built-in IR LED
IR projecct distance 15 meters(18 Unit Infrared LED)
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Lens Board Lens 3.6mm/F2.0(optional)
Video Output 1.0Vp-p 75 ohm
Gain Control(AGC) Auto
Cable BNC JACK
Water resistance IP66
Operation Temperature -10℃～+50℃ RH95% Max
Storage Temperature -20℃～+60℃ RH95% Max
Power Supply DC12V±10% 600mA
Dimension 75(W)X45(D)X75(H)mm
Weight 300g
