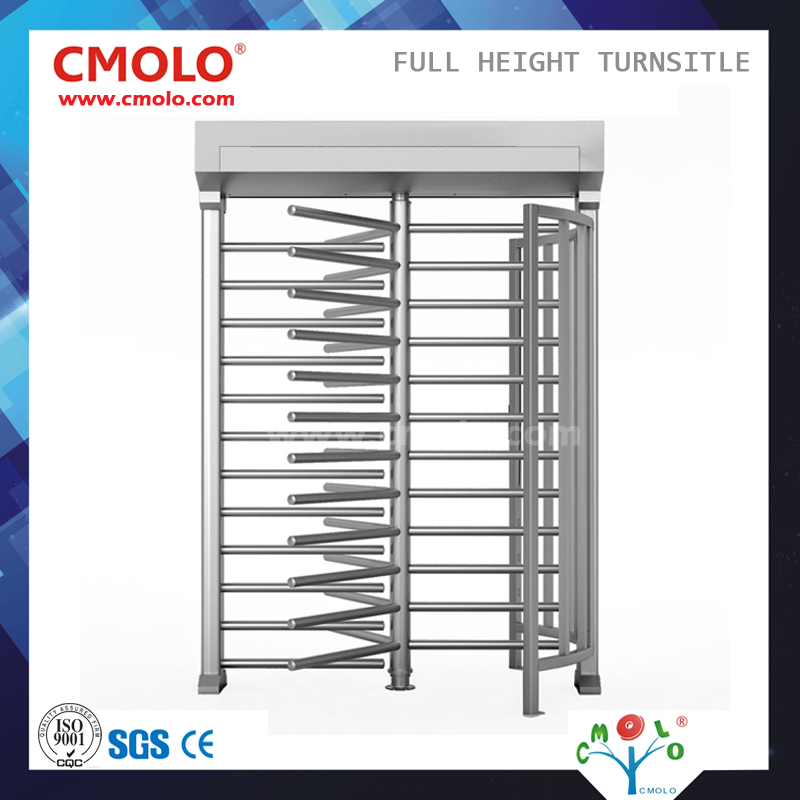

Semi-Automatic Type Pedestrian Full High Barriers (CPW-221AS)

Specifications

1. Product Descriptions:

Three-arm full height turnstile: Oblong top cover; single passageway, detachable;  Easy to transport.

 the housing is made of high quality stainless steel, and all the internal parts are with antirust and antiseptic treatment, therefore, the turnstile is durable. The whole machine works stably, mute, with low power consumption, energy conservation and environment protection.

with Semi-auto structure, after turnstile receives a legal signal, people need to manually push the arms to finish one passing action. the turnstile works stably, safely, and reliably.

with large hinder area can achieve one time to pass one person effectively, and it's suitable to be used at the smaller visitor flow rate and high security required occasions.

at the low-temperature environment, can be customized to install the constant temperature systems in the turnstile according to the requirement of customers.

 Provide the control software for human-machine interface and SDK protocol freely. It can achieve batch control and debugging function conveniently and the expansibility is very strong.


2. Framework Specifications:

Framework: 304 (Standard) / 316 grade stainless steel
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Arm Length: 500~700mm
Arm Diameter: 38mm (Standard) / 48mm
Max Tolerance of Arm: 30kg
Driving Force of Arm: 3kg

3. Electric Specifications:

Power Voltage: AC220V / AC85~230V
Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485 (1CH) / RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 20~35 passage / minute
Temperature: -20C~60C
Work Environment: Indoor/ Outdoor (Shelter)
Traffic-light Indication
