Product Details

Place of Origin:	China

Specifications

Conductor cross-section：0.5～1.5mm2(American wire gauge 22～16 ) Maximum current：1max＝19A
Size of cable: 0.5-1.5mm2(American standard 22-16) Max. Current=19A

ITEM NO	DIMENSION							color

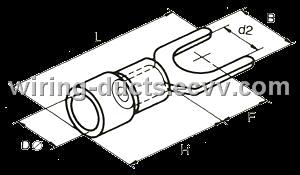

	US-made bolt No.	Bolt diameter	B	L	F	H	Dφ
	US-made bolt No.	d2(mm)	mm	mm	mm	mm	mm
YF 1.25－3	#4	3.2mm	5.7	21.2	6.5	10.0	4.3	red
YFS 1.25－3.5	#6	3.7mm	5.7	21.2	6.5
YFL 1.25－3.5	#6	3.7mm	6.4	21.2	6.5
YFS 1.25－4	#8	4.3mm	6.4	21.2	6.5
YFM 1.25-4	#8	4.3mm	7.2	21.2	6.5
YFL 1.25-4	#8	4.3mm	8.1	21.2	6.5
YFS 1.25-5	#10	5.3mm	8.1	21.2	6.5
YFL 1.25-5	#10	5.3mm	9.5	21.2	6.5
YFS 1.25-6	1/4	6.5mm	9.5	21.2	6.5
YFL 1.25-6	1/4	6.5mm	12.0	27.2	11.0

Conductor cross-section：1.5～2.5mm2(American wire gauge 16～14) Maximum current：lmax＝27A
Size of cable: 1.5-2.5mm2(American standard 16-14) Max. Current=27A

Item No.	Size							Color
	US-made bolt No.	Bolt diameter	B	L	F	H	Dφ
	US-made bolt No.	dφ	mm	mm	mm	mm	mm
YF 2-3	#4	3.2mm	5.7	21.2	6.5	10.0	4.9	blue
YFS 2-3.5	#6	3.7mm	5.7	21.2	6.5
YFL 2-3.5	#6	3.7mm	6.0	21.2	6.5
YFS 2-4	#8	4.3mm	6.4	21.2	6.5
YFM 2-4	#8	4.3mm	7.2	21.2	6.5
YFL 2-4	#8	4.3mm	8.1	21.2	6.5
YFS 2-5	#10	5.3mm	8.1	21.2	6.5
YFL 2-5	#10	5.3mm	9.5	21.2	6.5
YFS 2-6	1/4	6.5mm	9.5	21.2	6.5
YFL 2-6	1/4	6.5mm	12.0	27.2	11.0

Conductor cross-section：2.5～4mm2(American wire gauge 14～12) Maximum current ：lmax＝37A
Size of cable: 2.5-4mm2(American standard 14-12) Max. Current=37A

Item No.	Size							Color
	US-made bolt No.	Bolt diameter	B	L	F	H	Dφ
	US-made bolt No.	dφ	mm	mm	mm	mm	mm
YF 3.5-4	#8	4.3mm	8.0	24.8	7.0	12.5	6.2	black
YF 3.5-5	#10	5.3mm	8.0	24.8	7.0
YF 3.5-6	1/4	6.5mm	12.0	28.0	12.1

Conductor cross-section：4～6mm2(American wire gauge 12～10) Maximum current ：lmax=48A
Size of cable: 4-6mm2(American standar 12-10) Max.Current=48A

Item No.	Size							Color
	US-made bolt No.	Bolt diameter	B	L	F	H	Dφ
	US-made bolt No.	dφ	mm	mm	mm	mm	mm
YF 5.5－3.5	#6	3.7mm	8.3	25.2	7.5	12.5	6.7	yellow
YFS 5.5－4	#8	4.3mm	8.3	25.2	7.5
YFL 5.5－4	#8	4.3mm	9.0	23.9	7.5
YF 5.5－5	#10	5.3mm	9.0	23.9	7.5
YFS 5.5－6	1/4	6.5mm	9.0	23.9	7.5
YFL 5.5－6	1/4	6.5mm	12.0	31.2	12.0
YF 5.5－8	5/16	8.4mm	14.0	30.0	11.5

merit: Made of high quality metal, good conduction inside, good insulation at the insulated part, strong and shining at the metal part
