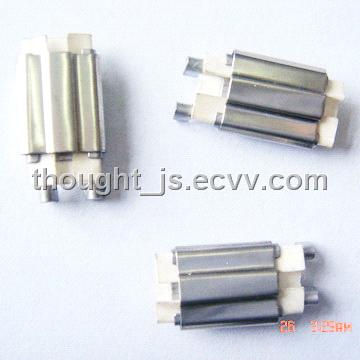

17AMJ Self-Hold Thermal Switch

Shipping:	10~15 DAYS
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

UP-PA2700 Management Controller

Price:10.00-200.00 USD/Set

Min. Order:1 Set
1290/153 thermostat

Price:

Min. Order:

Product Details

Place of Origin:	Jiangsu in China

Specifications

Snap action device
Individually temperature calibrated and checked
Repeatable temperature performance
Steel case suitable for many impregnation processes
Current and temperature sensitivity for maximum design flexibility
Wide selection of leads and insulating sleeves
Same size and opposite side terminals are available
Contact capacity:<ul>
250V AC/10A
120V AC/25A
16V/22A</ul>
Action temperature range: 45 to 180°C
Tolerance on open temperature: ±5, 8 and 10°C
Miniature size
Certified by UL, VDE and RoHS standards
Applications: shaded pole motor, permanent split capacitor motor, fluorescent lighting ballasts, HID ballasts, transformer, recessed lighting fixtures, battery packs, vacuum cleaners, automotive accessory motors, solenoids and PC boards
