Home >Products Catalog > rollfomer

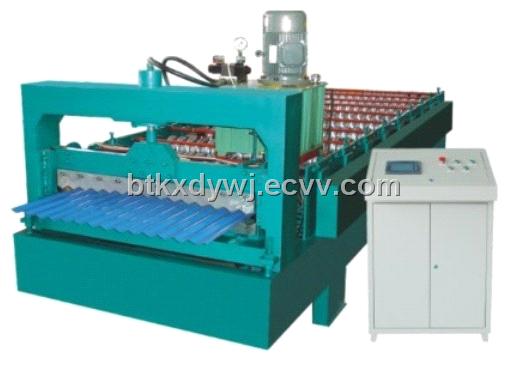

rollfomer

FOB Price:	15000.00 - 25000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	30days
Payment Terms:	L/C, T/T(Bank Transfer), cash

In Stock

Inquiry Now

Related products from verified members

Spooler Payoff Machine Spooler Payoff Machine

Price:4012.00 USD/Set

Min. Order:1 Set
Plasting Machine

Price:

Min. Order:1 Set
Mixing Lifting Device

Price:

Min. Order:
Mower

Price:

Min. Order:1 Set
Dial Stand

Price:

Min. Order:
Refrigerant Recovery & Recycling Unit

Price:

Min. Order:

Product Details

Place of Origin:	Hebei in China
Packaging Details:	naked

Specifications

1. Main counting parameters :

Appearance size: 6200mm*1350mm*1510mm

Width range: 1000mm

Thickness range: 0.3-0.8mm

Inner diameter range: Φ500mm

Speed of product: 8-10 m/min

2. Processes and components

Processes: Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system—mold pressing machine－Blade

3. Components of line:

No.	Name	Unit	Qty
1	Man-made uncoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	mold pressing machine	set	1
6	Blade	set	1

4. Function and structure:

Man-made uncoiler

Application and technical parameter ：

Inner diameter：φ500mm

Outer diameter：φ1100mm

Width：1000 mm

Loading weight：≤5 T

5. Main machine for roll forming

Application and technical parameter：

Pass：13 passes

Shaft diameter：Ф72mm

Roller material：45 steel(Cr coating)

Total power：3+3KW

6. Control system:

Function and operation：Control the starting ,operation and stopping of the complete line, including distribution section, operation table, counting instrument. Use PLC to control, set and adjust the length. Both man-made and auto operations: on the man-made condition, each equipment can operated by switch; on the auto condition, only circulating stop and rapid stop switch.

7. Hydraulic system

Function： apply power for cutting machine

8. Blade

Function and structure: cutting the forming sheet

Application and technical parameter：Blade material: Cr12 and Harding treatment

Max thickness: 0.3-0.6mm

9. Delivery date: 30days after receiving deposit.

10. Packing: NAKED

11. Sales clause: you should pay 30% of the total payment on the order day, after signing<Manufactured products purchase contract>, you can send person to inspect goods, then payoff the whole payment before shipping out the goods.

Besides, we can produce many profiled machine, such as C, Z, U, C+U unit, and many accessories.

Our factory is specialized in producing and designing each kind of roll forming machine and automatic cutting machine. Our products are widely applied to manufacture colored steel tiles for industry workshop, warehouse and high rise construction site. We undertake production with high technology and comprehensive processing equipment.
