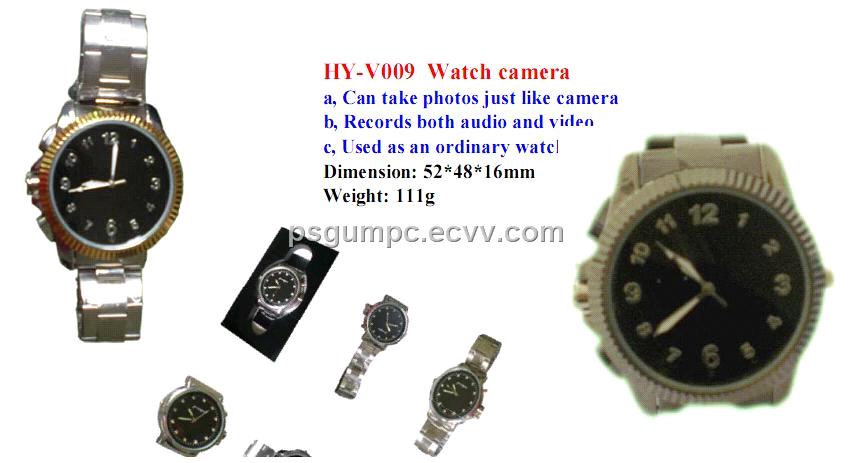

Watch Camera

The use of camera specification sheet
1. Structure diagram
1. Microphone 2. 3 camera. Power switch 4. Indicator 5. 6.USB reset



Second, product brief introduction
This product is the world's first camera with built-memory table,
The camera and recording features hidden in watches, is a modern science and technology
With the perfect combination of traditional watches. Products for simple, refined appearance
Letter, aesthetic and practical, easy to carry, is the business of education, security,
The media, justice, tourism, health care, life and other areas necessary
Utility by the users of all ages.
Three, operating instructions
1. Boot camera operation: In the shutdown mode, short press the power to open
Guan, blue lights, three seconds after the blue light to eliminate yellow light, yellow light flashing when the two
Times to enter the camera status.
Note: every boot after the first camera will have a period of
System preparation time, during this period, the system is busy,
Do not carry out other operations, such as repeatedly press the button, connect the calculation
Machine, etc.; otherwise, the longer preparation time.
2. Camera ceased operation: In the camera mode, short press the power to open
Clearance, then stop the current video and save video content, this
Yellow light flashes when the short-term, the system automatically shuts down.
Note:
a. is the video, if the lack of electricity at this time, the machine will first
Save the video content, then automatically shut down at this time required to machine
Charging device.
b. continuous video for more than one and a half hours, will automatically save
Once, then continue the video.
c. for each camera, the camera every time the start and stop the camera's
Cycle operation, the system will generate a new video files.
d. Have adequate lighting in the environment, maintain the table are the vertical
(Six-bit up), and was taken to maintain the scene of more than 50cm
Distance, so that will be moving in the right direction, color natural, King
Were clear, the screen image stable.
3. Connected computer: shutdown (light body) state, the
Computer can connect at this time, the computer will pop up movable magnetic
Disk logo, the video file directory for: * Disk \ Video;
Pull out the removable disk, click the bottom right corner of the taskbar can be
Mobile Device Manager icon inside uninstall the Removable Storage
Equipment, when the system recognizes the hardware can be safely pulled out after breaking
Open camera table with computer connections.
Note: According to computer configuration or system differences, identification can be changed
Dynamic disk will be slightly different time, please be patient, this period
Inter is best not to press the button for the operation of computer knowledge so as to avoid
Impact on other hardware. If time did not identify to a removable
Disk, try to re-insert, if still unable to identify the
Hardware, make sure that your operating system, driver, usb access
Mouth, whether cable was normal; pull out pen camera, it is best
Carried out in accordance with normal operating procedures, so as to avoid camera or computer
Table damage.
4. Charge: In the shutdown mode, insert the USB cable, connecting electricity
Brain USB interface, if the battery power, then the yellow light will be
Scintillation rules, instructions are now at the general state of charge,
At this point the bottom right corner of the taskbar right-click the removable disk icon
, Uninstall the removable storage device (Do not unplug the USB line).
When the battery is full after a long bright yellow, blue lights out.
Note: high-capacity built-in camera Table polymer lithium batteries,无记
Memory effect, can be used with rechargeable with, but the initial use of the first five,
I would be grateful if batteries run out after charging to saturation in order to activate the battery the most
Large-capacity, access to standard working hours.
5. Reset: When the product because of illegal operation or other unknown causes
Stops responding when necessary to reset the product.
Note: Note by the reset button that is turned off, press reset button does not shutdown
Save the video file.
6. Modified:
Create a new Notepad document, content format as follows:
2009-2-7 12:30:30
Save the file to the desktop, file named systemtime.txt.
Connect computer to copy files to magnetic systemtime.txt
Packing directory. Security remove removable storage devices.
After boot, such as the two under the yellow light flash and then press the power switch, the yellow light from the
Dynamic flash twice shutdown, the success of the new set-up time.
Fourth, the relevant parameters
Video files: 352 * 288 CIF resolution.
Video formats: AVI, recommended player: wind and thunder audio and video, violence
Wind video, kmplayer, Mplayer, such as multi-format support
Holders of media player.
Support System: windows98/me/2000/xp/2003 /
vista; mac os; linux; which win98 operating system,
To install with the disc attached to "U-Disk_driver
_win98.rar "document win98 driver.
Working hours: the new machine is full of electricity can be worked continuously for two small
At about that with the growth in the use of time, the battery working hours will be
Has been shortened. A long time unused, please use the former to the battery charging
Full electric.
Battery type: high-capacity polymer lithium electricity.
Charge voltage: DC-5V.
Interface types: in-line standard USB. Friday, Attention
Use: Please strictly comply with relevant state law, shall not be
This product used for other illegal purposes,否则后果自负.
Software upgrade: in order to make products with better performance, manufacturers will
Constantly improve the product software, this product has the convenience of their customers
The characteristics of the software upgrade, contact your local dealer to obtain the latest version
The software upgrade information and methods.
l Operating Temperature: Please use the natural temperature, not in the human body
The temperature can not adapt to working under.
Working humidity: Living in an environment suitable for human Humidity under
Use, please do not place wet product work environment, the product is not
Have the waterproof function.
Shooting illumination: Please have adequate lighting in the environment, please
Do not be camera directly at the sun, such as super-light source, in order to avoid light
Xue device damage.
Cleaning requirements: Do not dust density is too large to use the environment,
Lenses and other components in order to avoid dust contamination, the impact of camera-effect
Fruit. Wiping a mirror lens can be used paper or cloth gently wipe glasses, Paul
Hold cleaner.
Other matters: The product belongs to sophisticated electronic products, please do not make
Its strong impact, vibration; not in the strong magnetic field, strong electric
Field use.
Six other
l For more details please refer to supplemental CD-ROM.
l other matters not known contact your local dealer.
