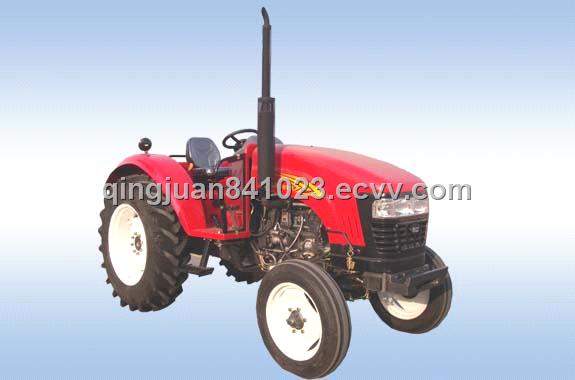

Tractor (DQ700B-DQ850B)

Inquiry Now

Related products from verified members

mini tractor

Price:

Min. Order:
XT60 Electric Tow Tractor

Price:7,500.00-8,600.00 USD/Set

Min. Order:1 Set
LED Tractor Light

Price:13.40-15.20 USD/Piece

Min. Order:1 Piece
SINOTRUK HOWO SERIES A7 TRACTOR

Price:

Min. Order:

Product Details

Place of Origin:	Shandong in China

Specifications

MAIN SPECIFICATIONS OF DQ800,850,900,950
Tractor Parameters	Model		DQ-800/850/900/950
	Drive type		2WD
	Overall dimension LXWXH(mm)		4593X2050X2810
	Wheel Track(mm)	Front	1385-1685(leave factory 1485) 1385-1685
		rear	1620-2020(leave factory 1620) 1620-2020
	Wheel base(mm)		2195
	Min. distance from ground(mm)		476
	Rated Traction Force(KN)		15.5/16.6/17.63/19.2
	Structure Weight（kg）	with cabin	3370
		without cabin	3120
	Turning Round Radius(m) （m）	without single break	3.9±0.2
	Theoretical Speed(km/h) (km/h)	Forward	2.31/34.85(general gear)/0.46-34.85（creeping gear） 2.31/34.85/0.46-34.85
		Reverse (km/h)	3.1-10.78(general gear)/0.62-10.78（creeping gear） 3.1-10.78/0.62-10.78
Engine Specifications	Model		LRC4108T LRC4108T 4MC4110 LRC4108ZT
	Type		Vertical put, Four-stroke, water-cooling, spray directly combustion chamber
	Rated Power(km)/Rotation(r/min）（kw）（r/min）		59/2300,62.5/2300,66/2300,73.5/2300
	Diesel Consumption(g/km/h)		≤242
	Machine Oil Consumption(g/km/h)		≤1.63
	Cylinder no.		4
Drive System	Clutch		Dual-stage clctch
	Gear Box		4x(2+1) general gear 4x(2+1)x2 creeper gear(optional) 4x(2+1) 4x(2+1)x2
	Differential		close type, 4 planetary bevel gear
	Differential Lock		Joggle cover type
	Final Transmissions		single grade planetary bevel gear
Travelling Mechanism	Tyre Size	Front	6.5-20
		Rear	16.9-34/13.6-38(paddy field tyre) 16.9-34/13.6-38
	Steering Gear Type		hydraulic steering
	Driver Brake		Disk type
Working Device	Hydraulic System	System Max. Lift Capacity at 610mm of Suspension Point(KN)（KN）610mm）	＞15
		Suspension model	Rear, three-points suspension，Category: II
	P.T.O Shaft	Rotating Speed(rpm)	760/1000, 540/1000(optional) 760/1000, 540/1000
		Spline Size	φ35，6 Rectangular spline，φ38，8 Rectangular spline φ35，6，或φ38，8
