Fingerprint Circuitboard

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Zhejiang in China

Specifications

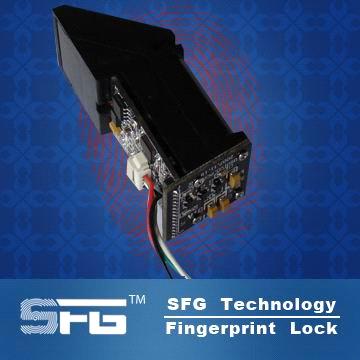

Fingerprint Identification Module(R302)

Detailed Product Description

Interface: USB 1.1 / UART(TTL logical level)

Dimension: 56*20*21.5mm

Image Capture Surface 14 x 18(mm)

Verification Speed < 1 second

Scanning Speed < 0.5 second

Character file size:256 bytes

Template size:512 bytes

Storage capacity:120/375/880

Security level:5(1,2,3,4,5(highest))

False Acceptance Rate (FAR) < 0.001%

False Rejection Rate (FRR) < 0.1%

Resolution 500 dpi

Voltage 3.6-6.0V DC via USB port

Working current:Typical 100mA ,Peak 150mA

Matching Method 1:N

Operating Environment Temperature: -15 to 45 centigrades
