Wireless USB Adapter (VWN301U)

Supply Ability:	100,000 Piece/Pieces per Week
Shipping:	14
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Wheel Adapters

Price:5.00-30.00 USD/Piece

Min. Order:100 Pieces
UP818 UP-828 SBGA137R Adapter SBGA137 Chip Adap...

Price:1.00-2.00 USD/Piece

Min. Order:1 Piece
Ductile Iron Flanged Adaptor with Rubber Ring

Price:1300.00 USD/Ton

Min. Order:2 Tons
RF coaxial adapter

Price:

Min. Order:
High Power WiFi 18000G USB Adapter 12DBI Antenn...

Price:8.90-15.90 USD/Piece

Min. Order:50 Pieces
65W Ultra-Slim Universal AC Adapter&Adaptor...

Price:12.00 USD/Piece

Min. Order:500 Pieces
power adapter(12V3A)

Price:18.00-20.50 RMB/Bag

Min. Order:500 Bags

Product Details

Place of Origin:	Shenzhen in China
Packaging Details:	Giftbox/Master Carton

Specifications

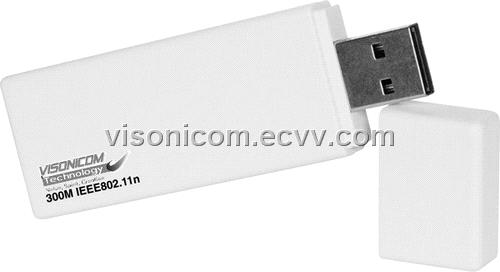

The Visonicom VWN301U Wireless n USB Adapter, adopts 1 transmitting and 2 receiving infrastructure, complies with IEEE 802.11n (Draft 2.0), and backward complies with IEEE 802.11g and IEEE 802.11b standards.

VWN301U’s wireless transmission rates can reach up to 150Mbps to bring smooth video streaming and online game experience.

VWN301U with internal Omni-directional antennas works well with other 11n and 11g/b products. VWN301U supports Wi-Fi Protected Security (WPS), WPA data security, TKIP/AES encryption, 64/128-bit WEP encryption.

VWN301U can also simultaneously operate bandwidth intensive applications using a lot of bandwidth which are sensitive to interruption. When using multiple bandwidth intensive applications, the most sensitive of these applications can be given priority over the others to be allocated more bandwidth in order to assure quality.

Features:

* Complies with IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b standards

* Up to 150Mbps data transfer rate in 802.11n mode of operation

* Supports Wi-FI Protected Security (WPS), supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1x

* Simple Configuration and monitoring

* Supports Roaming technology, guaranteeing efficient wireless connections

* Provides USB 2.0 Hi-Speed interface

* 20/40MHz interoperable channels dramatically increase performance

* Simple and easy to use user manageable software for a relaxed easy configuration of wireless client

* Backward Compatible with 802.11g and 11b equipment, Intel Centrino Compatibility tested

* Supports Windows 2000/XP/Vista OS

* Internal Antenna

Specification:

Standard	IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Interface	USB2.0
Frequency Range	2.4GHz-2.4835GHz
Data Rate	11n	150/135/121.5/108/81/54/40.5/27/13.5Mbps
		130/117/104/78/52/39/26/13Mbps
		65/58.5/52/39/26/19.5/13/6.5Mbps
	11g	54/48/36/24/18/12/9/6M（adaptive）
	11b	11/5.5/2/1M（adaptive）
Channel	1~11 (US, Canada) ; 1~13 (Europe) ; 1~14 (Japan)
Spread Spectrum	DSSS
Modulation	BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Transmission Distance	Indoor up to 100m , outdoor up to 300m
Receive Sensitivity@PE	11n: -70dBm@10% PER
	11g: -70dBm@10% PER
	11b: -85dBm@8% PER
Transmit Power	17dBm
Antenna Gain	2dBi
LED Indicator	Status
Data Security	WPA;64/128-bit WEP; TKIP/AES
Environmental	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Operating Humidity: 10%~90% non-condensing
Dimensions	802610mm
Safety & Emission	FCC, CE
OS Support	WIN2000/XP/VISTA
