Hongye Woodworking Factory
China Manufacturer with main products: wooden boxes |
Amorphous Alloy
| FOB Price: | 7.00 - 10.00 USD/Kilogram |
|---|---|
| Supply Ability: | 60 Ton per Month |
| Payment Terms: | L/C, T/T(Bank Transfer), D/P, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Hebei in China |
|---|---|
| Packaging Details: | spool, cartons |
Specifications
FE-BASED AMORPHOUS ALLOY RIBBONS
Specification:
|
Item No. |
Width mm |
Thickness μm |
|
YN-TF-05 |
5±0.2 |
30±5 |
|
YN-TF-08 |
8±0.2 |
30±5 |
|
YN-TF-10 |
10±0.5 |
30±5 |
|
YN-TF-15 |
15±0.5 |
30±5 |
|
YN-TF-20 |
20±1 |
30±5 |
|
YN-TF-25 |
25±1 |
30±5 |
|
YN-TF-30 |
30±2 |
30±5 |
|
YN-TF-40 |
40±2 |
30±5 |
|
YN-TF-50 |
50±2 |
30±5 |
|
YN-TF-70 |
70±5 |
30±5 |
|
YN-TF-100 |
100±5 |
30±5 |

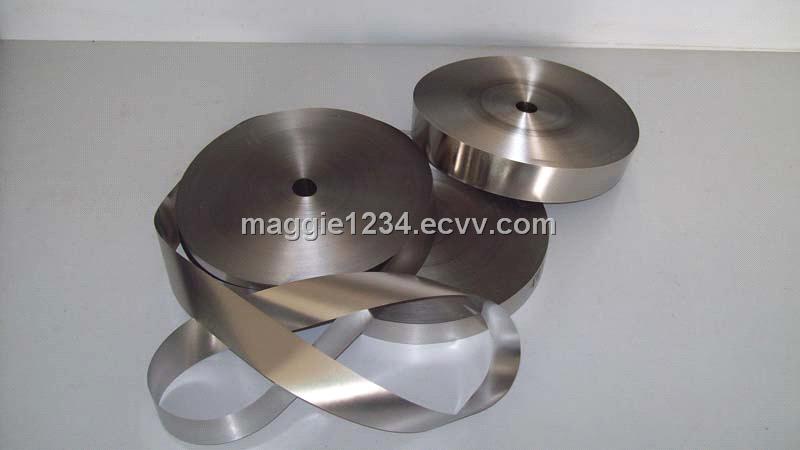

Fe-based Amorphous alloy ribbon
Application:
Mainly used in substituting for silicon steel, to make cores for all kinds of distribution transformers, medium frequency transformers, operating frequency ranges from 50Hz to 10kHz, working as large power switch reactor core material, the operating frequency can be up to 50KHZ.
Characteristics:
High saturation flux density
High permeability
low coercive force
Low core losses(1/3-1/5 of silicon steel)
Low excitation current
Good thermal stability and aging stability.
