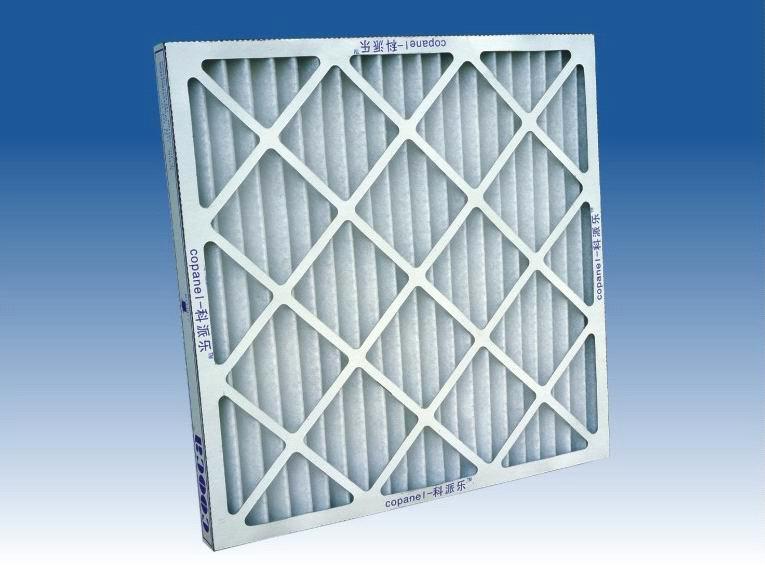

Cardboard Panel Filter
Supply Ability: | 200 Piece/Pieces per Day |
---|---|
Shipping: | as soon as possible |
Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
Place of Origin: | Jiangsu in China |
---|---|
Packaging Details: | carton |
Specifications
Copanel coarse panel filter is a type of eco-friendly prefilter manufactured with profile pleated synthetic media, which enlarges the effective filtration area , extends life-time, reduce maintenance cost and ease labor intensity to replace the filter.
Special Features:
- Water-proof cardboard frame of natural wood pulp made by tools, lightness in weight and convenience in installation.
- Internal medium is adhered with frame, giving a secured sealing and preventing airflow from leaking out.
- Downstream side of the synthetic media is specially finished smooth to refrain second pollution from shedding fibers.
- Media characterized with high loftiness, low resistance and high dust holding capacity.
- Waste is disposable and can be incensed conveniently, meeting the requirements of environmental protection.
- Glass-fiber can be used as an alternative at customer's request.
Technique parameter ( EN779 )
Type |
Dimension(mm) |
Rated air flow (m3/h) |
Initial pressure(Pa) |
Filter class |
Effective filter area (m2) |
Average filter efficiency(%) |
KGP-30P/40P |
595x595x24 |
3400 |
75/80 |
G3/G4 |
1.0 |
80/88 |
KGP-30P/40P |
290x595x24 |
1700 |
75/80 |
G3/G4 |
0.5 |
80/88 |
KGP-30P/40P |
490x595x24 |
2850 |
75/80 |
G3/G4 |
0.85 |
80/88 |
KGP-30P/40P |
595x595x46 |
3400 |
65/70 |
G3/G4 |
1.35 |
85/90 |
KGP-30P/40P |
290x595x46 |
1700 |
65/70 |
G3/G4 |
0.7 |
85/90 |
KGP-30P/40P |
490x595x46 |
2850 |
65/70 |
G3/G4 |
1.15 |
85/90 |
KGP-30PS/40PS |
595x595x46 |
3400 |
60/65 |
G3/G4 |
1.75 |
85/90 |
KGP-30PS/40PS |
290x595x46 |
1700 |
60/65 |
G3/G4 |
0.90 |
85/90 |
KGP-30PS/40PS |
490x595x46 |
2850 |
60/65 |
G3/G4 |
1.47 |
85/90 |
KGP-30P/40P |
595x595x95 |
3400 |
55/60 |
G3/G4 |
2.70 |
88/92 |
KGP-30P/40P |
290x595x95 |
1700 |
55/60 |
G3/G4 |
1.35 |
88/92 |
KGP-30P/40P |
490x595x95 |
2850 |
55/60 |
G3/G4 |
2.25 |
88/92 |
Recommended final pressure drop: 200Pa
Heat resistance/ temporary peak value: 100 Celsius Degree
Special-sized type can be supplied at custom's request.
