TAIAN LUNENG MACHINERY CO.,LTD.
China Manufacturer with main products: LN SERIES WHEEL LOADER, SKID STEER LOADER AND SO ON |
Rops Cabin Loader (LN935)
| FOB Price: | 25000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | 20 days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | nude; |
Specifications

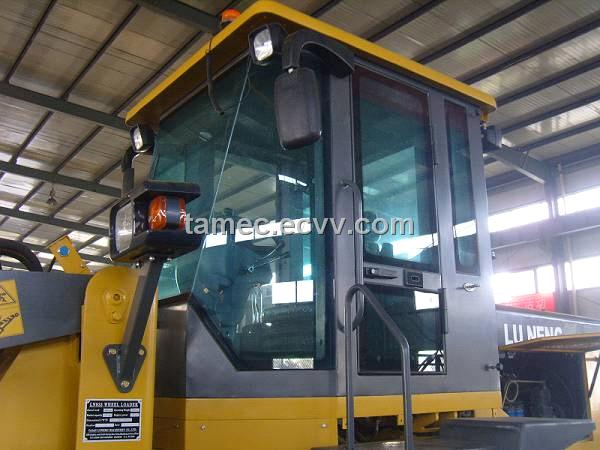

IT IS ROPS CABIN WITH CE STANDARD
FEATURE:
High-powered engine, large power storage
The new sealed cab with warm-wind equipment is much more comfortable for operating.
Torque-converter and transmission box, the detached structure makes easy maintenance.
Main articulated positions take sealed, lubricated, double dust-proof layers, which owns good durability.
The strengthened bucket with additional edge tooth is more wear-resisting and reliable.
SPECIFICATION:
|
Items |
Technical Specifications |
Items |
Technical Specifications |
|
Rated capacity |
1.7mз |
Transmission system |
Gear box separated from torque-converter |
|
Rated weight |
3500kg |
Torque-converter model |
YJ315x |
|
Operating weight |
9700kg |
Type |
Three-element, single stage |
|
Automatic leveling ability |
Yes |
Transmission box type |
Full power shift, countershaft type |
|
Static tilting load |
58.8KN |
Number of gear shift |
4 forward and 2 reverse |
|
Max breakout force |
120KN |
Max travel speed |
36km/h |
|
Max drawing force |
90KN |
Front and rear axle |
|
|
Max grade ability |
30° |
Main reducer type |
Single stage reduction |
|
Max.dump height |
3050mm |
Final reducer |
Single stage planetary |
|
Max.dump reach |
1260mm |
Tire |
|
|
Min.ground clearance |
410mm |
Size |
17.5-25 |
|
Wheel base |
2600mm |
Front wheel pressure |
343kpa |
|
Tread |
1870mm |
Rear wheel pressure |
294kpa |
|
Height with bucket at full raise |
4870mm |
Steering system |
Fully hydraulic steering |
|
Lifting time |
5.5s（full load ） |
steering angle
|
35°±1(each direction) |
|
Total cycle time(lifting, dumping, lowering) |
9.67s（full load） |
Min turning radius |
5160mm
|
|
Overall dimensions (l×w×h)mm |
6990×2420×3000 |
Hydraulic system |
|
|
Engine |
Yuchai （China famous engine） |
Distribution valve
|
DF25.2C |
|
Model |
YC6108G |
Gear pump |
GBGV2100 |
|
Type |
In line, water cooled, four stroke, dir.inject |
Brake system
|
|
|
Rated power |
92KW |
Service brake |
Air assisted oil disc type four-wheel brake |
|
Rated speed |
2200r/min |
Parking brake |
Soft axis, cable control |
|
Min oil consumption |
235g/kw.h |
Fuel tank capacity |
125L |
