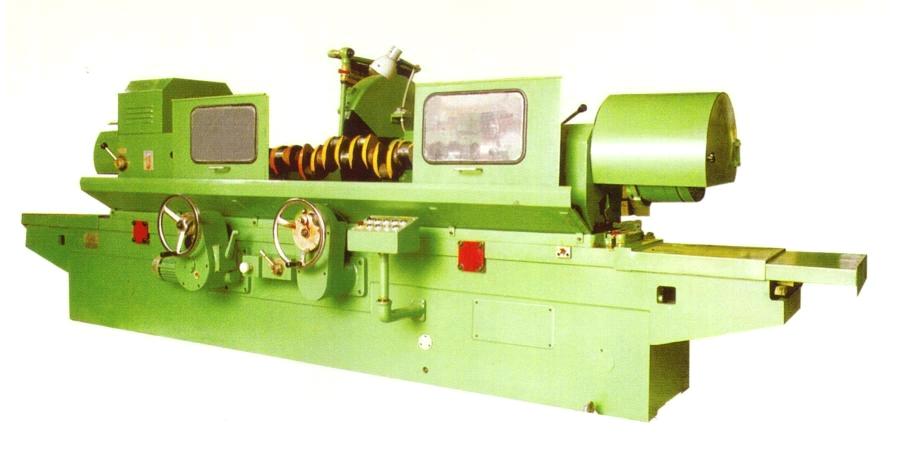

Grinding Machine

Inquiry Now

Related products from verified members

Rotary Metal Working Machine

Price:

Min. Order:1 Set
Circular Knife Grinding Machine DMSQ-350C

Price:1.00 USD/Set

Min. Order:1 Set
Cylinder grinding machine LJ27-600

Price:

Min. Order:
CNC Stem Grinding Machine | Price & Manufac...

Price:30000.00-45000.00 USD/Set

Min. Order:1 Set
MK1320 CNC Cylindrical Grinding Machine

Price:1.00-100000.00 USD/shanghai

Min. Order:

Product Details

Place of Origin:	China

Specifications

Features:

Three different work speeds are obtainable by making use of the belts in the workhead.

Cross chucks are used in the headstock and tailstock.

Friction coupling is used in the headstock transmission chain for its easy adjustment.

Table traverse is operated either by hand or by power.

Wheelhead rapid approach and with drawl is effected through hydraulic means.

The wheel spindle being of 80mm in diameter, has good rigidity and strength.

Use is made of roller ways for wheelhead movement.

The bed ways and wheelhead ways are lubricated in an automatic cycle by means of the oil pump.

Specifications:

Max. work diameter x Max. work length: dia.580 x 2000mm

Capacity:

Max. swing over table: 580mm

Work diameter ground with steady rest: dia.50, dia.120mm

Throw of crankshaft: 120mm

Max. work length ground in 3-jaw chuck: 1800mm

Between centres: 2000mm

Max. work weight: 150kg

Workhead:

Centre height: 300mm

Work speed: 25,45, 65, 100r/min

Wheelhead:

Max. cross movement: 185mm

Wheelhead rapid approach and with drawal: 100mm

Wheelfeed per turn of cross feed handwheel: 1mm

Per gread. Of cross feed hand wheel: 0.005mm

Grinding wheel:

Wheel spindle speed: 740, 890r/min

Wheel peripheral speed: 25.6-35m/sec

Wheel size (O.D. x width x bore): dia900 x 32 x dia305mm

Table:

Table traverse per turn of handwheel: coarse 5.88mm; fine 1.68mm

Table swivel (taper 18/100): 5 degree

Table swivel per grad. of scale (taper 1:50): 10'

Overall capacity of motors: 11.2KW

Overall dimensions (L x W x H): 4900 x 2037 x 1584

Weight: approx. 7000kg

Main accessories:

Jaw chuck: 2 sets

Wheel dresser: 1 set

Steady rest: 1 set

Wheel balancing arbor (dia80): 1 set

Leveling wedge: 11 sets

Wheel adapter: 1 set

Driving dog: 1 set

Vertical aligning stand: 1 set

Horizontal aligning stand: 1 set

Optional accessories (at extra cost):

Wheel balancing stands HJX-85-40: 1 set

Measuring device of hanging: 1 set

End dresser: 1 set
