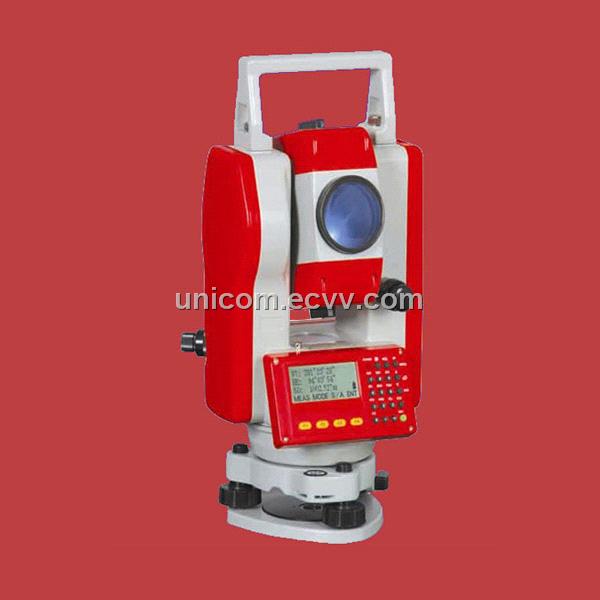

Surveying Instrument (DTM112B)

FOB Price:	1868.00 - 2818.00 USD/Set
Supply Ability:	5000.00 Set/Sets per Year
Shipping:	8 Days

In Stock

Inquiry Now

Related products from verified members

Two-Post Lift

Price:

Min. Order:1 Set
Stamping Processing Products

Price:/Piece

Min. Order:1000 Pieces
WS Series Welding Machine

Price:911.00-3111.00 RMB/Set

Min. Order:2 Sets
IP-Box V3 Phone Passcode Crack Tool Phone Scree...

Price:1.00 USD/Set

Min. Order:1 Set
Hydraulic Press for Composite Material Forming

Price:300000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Shandong in China
Packaging Details:	Carton

Specifications

Total Stations (DTM112B) Models DTM112A, DTM112B, DTM115A, DTM115B, DTM122A, DTM122B, DTM125A, DTM125B suits the measurement with target and prism. Angle accuracies are 2", 3" and 5". Detachable tribrachs are standard on all models. Other standard features are Optical Plummet, dedicated Number Keys, Alpha key input, manual focusing. The 16,000 points data memory can store stake out coordinates and/or collected data in any mix.

Model	DTM112A,DTM112B DTM115A,DTM115B	DTM122A,DTM122B DTM125A,DTM125B
Telescope
Length	150mm
Magnification	30X
Image	Erect
Shortest sighting dictance	1.0m
Additive constant	0
Objective lens aperture	φ48
Resolving power	3.75
Field of view	1°3026m/1000m
Stadia proportion	100
Angle measurement section
Horizontal angle panel	Photoelectric incremental rotary encoder scanning, adopt diametrical detection
Vertical angle panel	Photoelectric incremental rotary encoder scanning, with absolute 0 index point
Minimum display	1,5,10
Accuracy	2,5,10
Compensator
Type	Single axis liquid tilt sensor
Range	±3
Accuracy	±1
Display resolution	According to angle display resolution
Distance measurement section
Measureing range	Average weather condition, visibility about 23.5km
Single prism	1000m		1800m
Three prism	1600m		2600m
Minimum display	Accuracy measurement mode: 1mm
	Track mode: 10mm
Accuracy	±3mm+2ppm?D
Measuring time
Accuracy measurement mode	2 s
Track mode	0.8 s
Display
Display equipment	Double sides 20-digit, 4-line dot matrix LCD panel with background illumination
Horizontal angle display range	0°359°5959
Vertical angle display range	0°359°59590°±89°5959-999.99%999.99%
Applied measuring module
Recession module	Area measure module
Coordinate measuring module	Offset measurement module
Laying-out	Missing line measurement module
Remote elevation measurement module	Memory≥15,000 dots
Measuring mode
Horizontal angle	Left angle, right angle, set mode
Vertical angle	Zenith 0°, horizontal 0°, horizontal 0°±90°,slope%
Measure time	?Less than 0.5 second
Angular unit	degree,gon,mil
Others
Level sensitivity	Plate level20/mm,30/mm
	Circular level8/2mm
Optical plummet	ImageErect
	Magnification3X
	Shortest focus0.5m
Data output	Asynchronous serial in RS-232/USB(option)
Height	232mm
Weight	6.2kg
Power supply	Rechargeable batteryBDC1800mAh,6v (Ni-MH Battery)
Battery working time	Distance measuring time6 hours
	Angle measuring time100 hours
Note:A with compensator ; B without compensator
