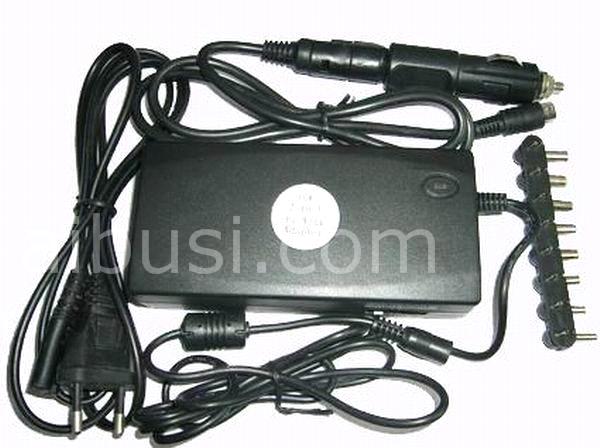

2 in 1 universal adapter CC90

Specifications

This is an universal adapter for Notebook Computer (2 in 1 - 90w), AC input cable and a DC output cable, they supply alternative for high performance laptops, you can charge your notebook in offce, hotel , at home or in your car; Featuring 8 tips, , this adapter is compatible with most laptop model, including models from Toshiba, HP/Compaq, Dell, Fujitsu, Gateway, IBM, Sony, Acer and Samsung.

1.Specifications:

(1).AC: Rated Input Voltage (47-63Hz)              AC120V or AC230V
DC: Rated Input Voltage                                  DC12V
AC:Vibration Input Voltage Range (47-63Hz)     AC100V-240V
DC:Vibration Input Voltage range              DC12V

(2).AC: Input Rated Current  1.8Amp
DC: Input Rated Current   11Amp
AC: Input Power 120W
DC: Input power 110W

(3).Output Power (max)          90W
AC:Efficiency                       >80%(TYP)
DC:Efficiency                >85%(TYP)

(4).Output Voltage:12V/15V/16V/18V/19V/20V/24V(0/+0.8VNO LOAD)
USB Port:5V(0～+0.8V NO LOAD)    USB Output:5V/2A

(5).Output Voltage:12V/15V/16V/18V/19V/20V/24V        Max 24V 3.75Amp Max(rating load ±5% typical±0.8V)
Output Current: 12V/15V/16V/18V/19V/20V/4.5Amp      Max 24V 3.75Amp
USB Port:5V(rating load 5V-5.5V)2A Max

2. Key Features:
-- 2 in 1 function: AC adapter+DC adapter, meantime there is a USB output port;
--Universal Input voltage at 100V-240V AC;
-- This is Universal 90W DC adapter for laptop ,ensure optimum performance saving you time and money;
-- Supply Stabilized Output Adjustable output voltage at 12, 15V,16V,18V,19V, 20V, 24V , different voltages are suitable for the most laptop/notebook computers, 100% guaranteed compatibility;
-- Auto-reset to the lowest voltage (+15V)after current interruption to protect your laptop/notebook computer;
-- LED Indicator, and let you know which output voltage easily;
-- Build in overload protection;
-- Including 8 connectors for user to change different voltage easily;
-- Patent design.

3. Compatible devices list:
Type Output Connector Size Fit for laptops
15V/M1 15V/Max90W 6.3*3.0mm Toshiba
16V/M2 16/Max90W 5.5*2.5mm IBM
16V/M3 16/Max90W 6.5*4.4mm (with1.4mm pin) Sony,Fujitsu
18.5V/M4 18.5/Max90W 4.8*1.7mm Compaq
19V/M5 19/Max90W 5.5*2.5mm Acer,Compaq,Delta,HP, Fujitsu,Gateway,Toshiba,Liteon
19V/M6 19/Max90W 5.0*3.0mm (with1.0mm pin) Samsung
19V/M7 19/Max90W 5.5*2.1mm Acer,Compaq,Delta,HP, Fujitsu,Gateway,Toshiba,Liteon
19.5V/M8 19.5/Max90W 6.5*4.4mm (with 1.4mm pin) Sony

4. Others:
-- Warranty:12 months ;
-- Term of Payment: E. X. W or F. O. B
--Packing: 1 set in one inner box then 42 sets put into brown carton, and carton size is 54*52*40CM
--Transportation: By air or by sea, Express.
