China Nitchen Equipments Group Limited
China Manufacturer with main products: Roll Forming Machine, Metal Forming Machine, Downpipe Machine, Steel Deck Machine |
Related products from verified members
| Place of Origin: | China |
|---|
Specifications

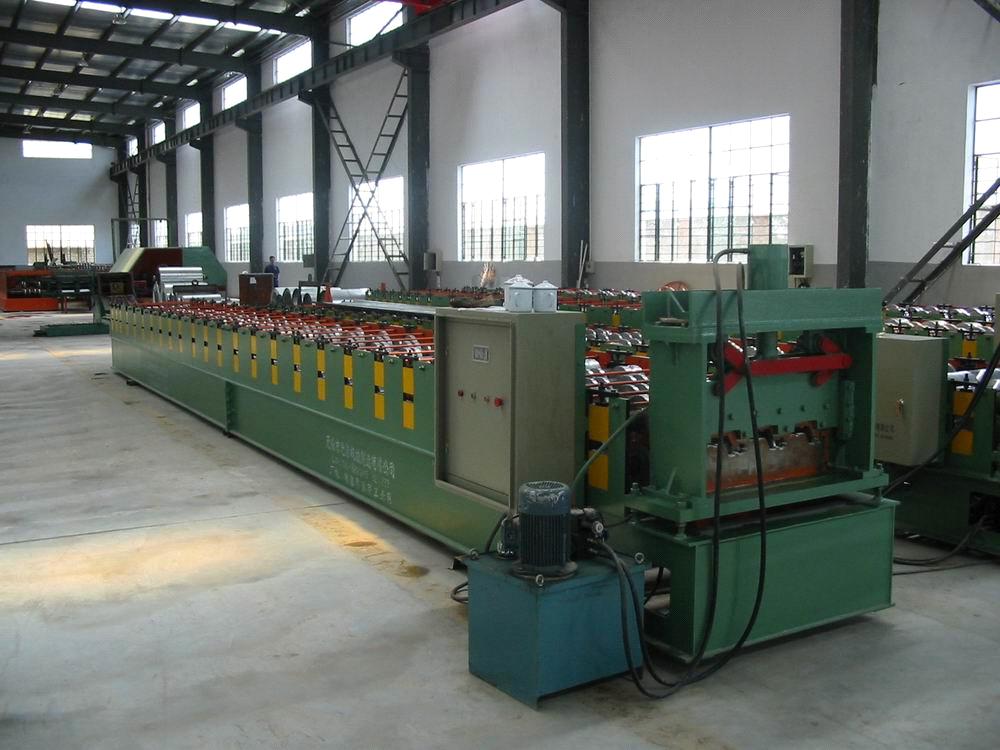

Deck steel roll forming machine consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, supporter table. The roll formed sheet produced by this machine has high strength with big rib, which adheres well to concrete. It is used as the floor of high buildings, and the cost of such floor is low.
Main Parameter
1) Steel Material: Q235,
2) thickness of material: 0.8 --1.2 mm
3) Feeding Width Max: 1250mm
4) Capacity of Decoiler: 5000 kg
5) Inner Diameter of the Coiler: 500-600mm
6) Outer Diameter of the Coiler: 1800mm
7) Forming steps: 24 steps
8) Driving System: Chain Transmission
9) Power of main motor: 4kw，3phases, 380V, 50Hz
10) Reducer: Cycloid Pin
11) Power of Hydraulic cutting Machine: 3kw
12) Forming Speed Max: 12m/min
Main Components:
Passive uncoiler: 1set
Guiding equipment: 1 set
Roll forming equipment: 1 set
Pressing equipment: 1set
Post-cut equipment: 1 set
Hydraulic station: 1 set
PLC controlling desk: 1 set
Supporter table: 1 set
Security cover (optional)
Roll Forming Process of the Steel Deck Machine:
Decoiler---Flattener----Roll Forming---Measure---Cutting---Runout Table
