China Nitchen Equipments Group Limited

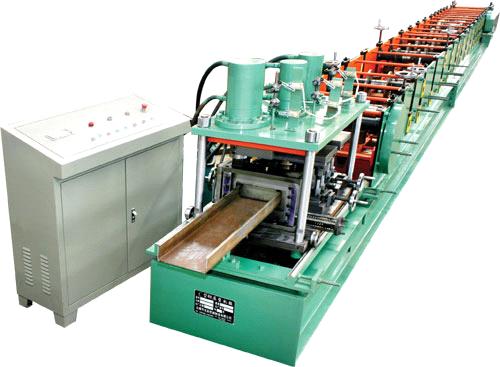

China Manufacturer with main products: Roll Forming Machine, Metal Forming Machine, Downpipe Machine, Steel Deck Machine |
Related products from verified members
Specifications
1. Material to be Rolled: Q345, Steel Coil
2. Thickness To be Rolled: 1.5-2.5mm
3. Coil Width Max: 700mm
4. Inner Diameter of the Coil: ф500-600mm
5. Capacity of the Decoiler: 5T
6. Main Power: 11kw, 3phases, 380V, 60Hz
7. Power of Hydraulic Cutter: 7.5kw
8. Reducer: BWY39-58-15 Cycloid Pin
10. Flattener: ф90*7 rollers
11. Roll Stand: 12 horizontal Roller stands; 5 side roller stands
12. Forming Speed: up to12m/min
13. Shaft: ф80mm, 40Cr, Quenched
14. Forming Roller: Maxф420mm, GCr15, HRC58-62
15. Transmission: 1.5＇＇column Chain Transmission
16. Straightening System: Cross Shaft
17. Forming Speed Max: 12m/min
18: Weight: about 8T
18. Dimension (L*W*H) and Layout:
Manual Decoiler: 1.1m*1.8m*1.2m
Main Machine: 11m*1.8m*1.3m
Runout Table: 4m*0.4m*0.6m
Note: A is for Decoiler; B is the space reserved for the material. It is usually 2.5 to 3M. And C is for Main Machine. D is for runout Table.
2.2.4 Process and Features
Decoiler — Guiding —Feeding — Flattener —Roll Forming — Encoder — Straightener — run out table
