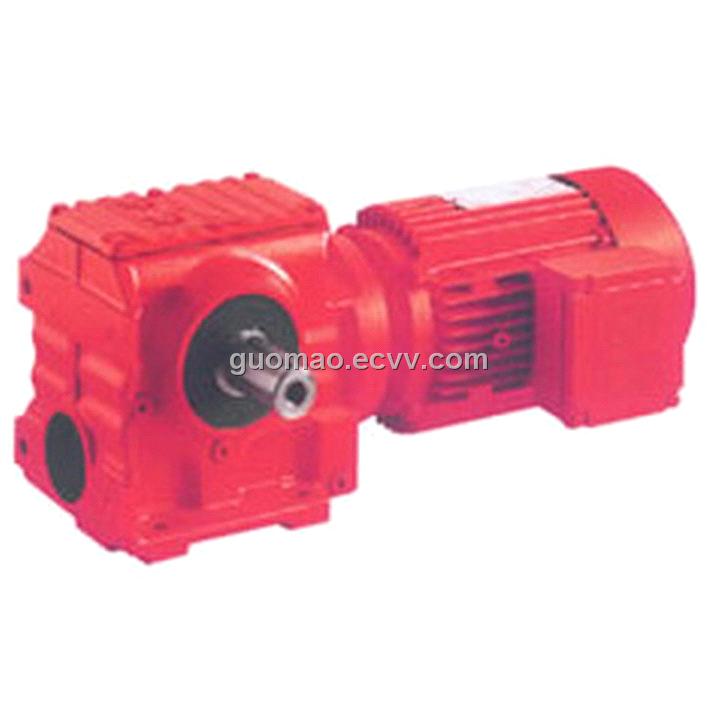

Helical Worm Reducer (GS)

FOB Price:	1000.00 - 100000.00 USD/Set
Supply Ability:	1,000,000 Set/Sets per Month
Shipping:	1 month after receiving payment before shipment
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Rexroth GFT Travel drive track motor speed redu...

Price:500.00-1,000.00 USD/Set

Min. Order:1 Set
CJ Series Gear Reducer

Price:

Min. Order:1 Set
VGP Series Speed Reducer for Large Power Vertic...

Price:

Min. Order:

Product Details

Place of Origin:	Shandong in China
Packaging Details:	Cases

Specifications

Helical worm reducer input power: 0.12-22kw

Input torque: 17-4200nm

Transmission ratio :o.1-349,and can combine to more bigger.

Helical worm reducer features output shaft are vertical to input shaft, it consisit of single stage helical gears and single worm gear .

There are many installation means such as flange, foot,hollow output shaft and can be added torque armand other specal accessories.

Main characties:

1.High modularization design: may equip with various motor or other power input conveniently. Same machine type may equip with various power motor. It is easy to realize the combination and junction between every machine type.

2. Transmission ratio: fine division, wide scope. The combined machine type may form very large transmission ratio, i.e. Output very low rotary speed.

3. High strength, compact: the box body is made of high strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.

4. Long life: Under the condition of correct type chosen (including choosing suitable operation parameters) normal operation and maintenance, the life of main parts of speed reducer (except wearing parts) should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal and bearing.

5. Low noise: because main parts of speed reducer are processed, assembled and tested critically, therefore the noise of speed reducer is low.

6. May bear larger radial load. 7.It may bear the axial load that is not more than 15% of radial force.
