| Place of Origin: | Jiangsu in China |
|---|---|
| Packaging Details: | ro-ro ship |
Specifications
|
Item
|

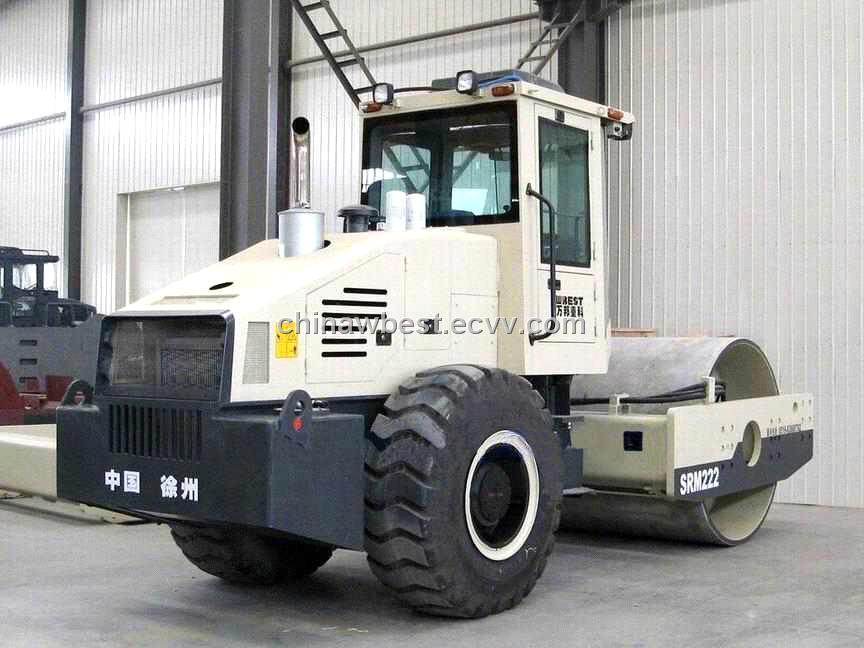

SRM222
|
|
working mass (Kg)
|
22000
|
|
module mass on front drum (Kg)
|
10600
|
|
module mass on rear wheels(Kg)
|
11400
|
|
static liner load(N/cm)
|
492
|
|
speed range
|
|
|
Ⅰspeed (km/h)
|
2.47
|
|
Ⅱspeed(km/h)
|
4.86
|
|
Ⅲspeed(km/h)
|
10
|
|
grade ability(%)
|
25
|
|
Min. turning radius(mm)
|
6500
|
|
Min. clearance(mm)
|
478
|
|
vibrating frequency(Hz)
|
29
|
|
nominal amplitude(high/low)
|
2.1/1.1
|
|
centrifugal force@high/low amplitude(KN)
|
390/220
|
|
vibrating drum diameter(mm)
|
1600
|
|
vibrating drum width(mm)
|
2150
|
|
engine model
|
Dongfeng CUMMINS 6BTA5.9 or Shanghai diesel engine D6114ZG6B
|
|
Max power(kw)
|
132
|
|
rated speed (r/min)
|
2200
|
|
total length(mm)
|
6140
|
|
total width(mm)
|
2320
|
|
total height
|
3250
|
