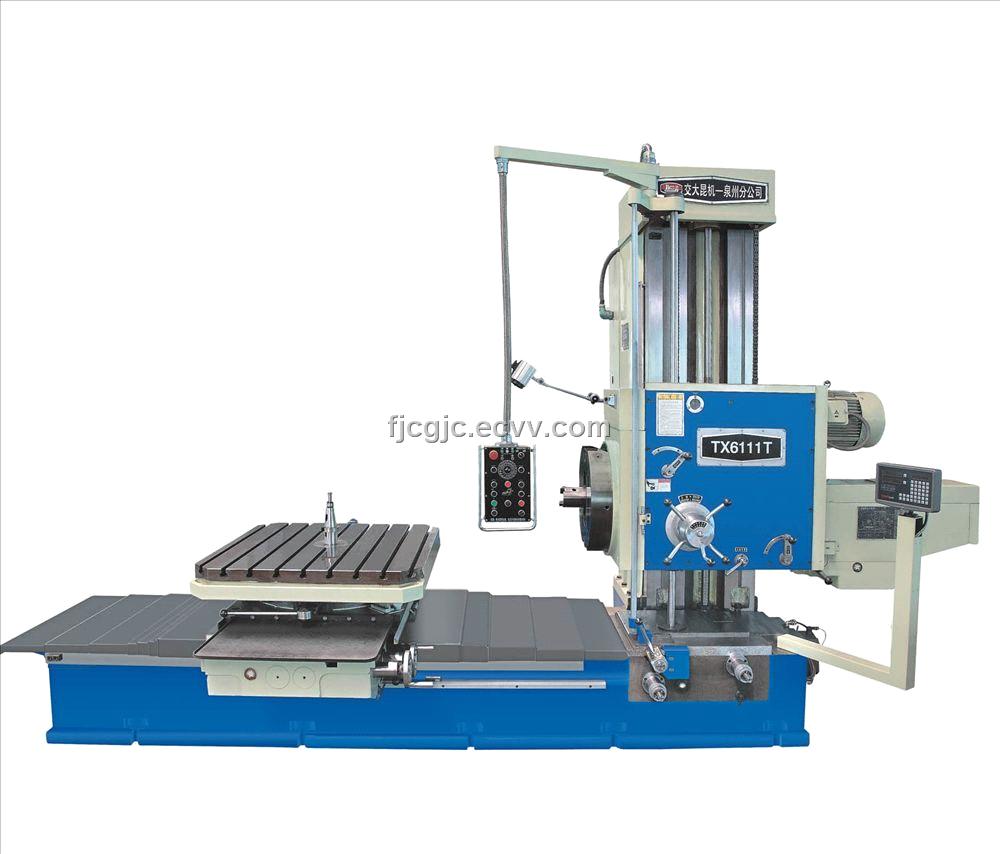

Horizontal Boring/Milling Machine

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Place of Origin:	Fujian in China

Specifications

Specification	Unit	Models
Specification	Unit	TX6111T	TX6111T-1
Spindle diameter	mm	110	110
Spindle taper	mm	ISO 50#(7:24)
Spindle speed	r/min	9-1000	9-1000
Power of main drive motor	KW	11	11
Max drilling capacity of spindle	mm	50	50
Max boring capacity of spindle	mm	300	300
Speed of facing chuck	r/min	6-221	6-221
Traverse of facing chuck slide	mm	170	170
Max boring capacity of facing chuck	mm	600	600
Table size(L×W)	mm	1200×1100	1200×1100
Table load	kg	2500	2500
Traverse travel of table	mm	900	1200
Vertical travel of spindle head	mm	1100	1100
Longitudinal travel of table	mm	1500	1500
Axial travel of spindle	mm	600	600
Range of spindle, headstock and table feeds per spindle revolution	mm/min	1-1000	0.04-6
D RO		X,Y	X,Y
Overall dimensions of machine (L×W×H)	mm	4900×1950×2950	4900×2250×2950
Weight of machine(approx)	Kg	14500	16000
