Specifications

Brief:

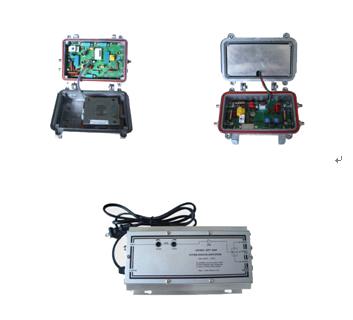

CG-SK862AP is one-way-trunk (distribution) amplifier, with 860MHz platform, 30dB forward gain. One output or two output optional (tap or distribution typ). Adoption of high performance linear transformer makes the product adjustable within wide range of voltage. The product is suitable to be used in building HFC network and traditional CATV network.

Features:
1. 45~862MHz platform;
2. Forward path with single push-pull amplify module;
3. One output or two outputs optional (tap or distribution);
4. 60V (35~90V) or 220V (100V~265V) optional;
5. 8 Amp power passing;
6. The product can be upgraded to 862MHz.

Band Pass: 45~862MHz
Flatness: ?0.75dB
Return Loss: ≥16dB
Operational Gain: 30dB max (one output port)
Full Gain: 32dB min (one output port)
EQ Value: 3~21dB (1.5dB per step) or 1~20dB variable
Noise Figure: ≤10
C/CTB: ≥62dB (@ 59 channels PAL system, push-pull module)
C/CSO: ≥60dB (@ 102dB? V output)
RF Test Port: -20dB
Hum: ≥66dB
Gain Adjustable: 0~10dB
RF Connection: F type or 5/8, 24
Power: 220V (100V~265V)/ 60V (35V~75V)
